Description

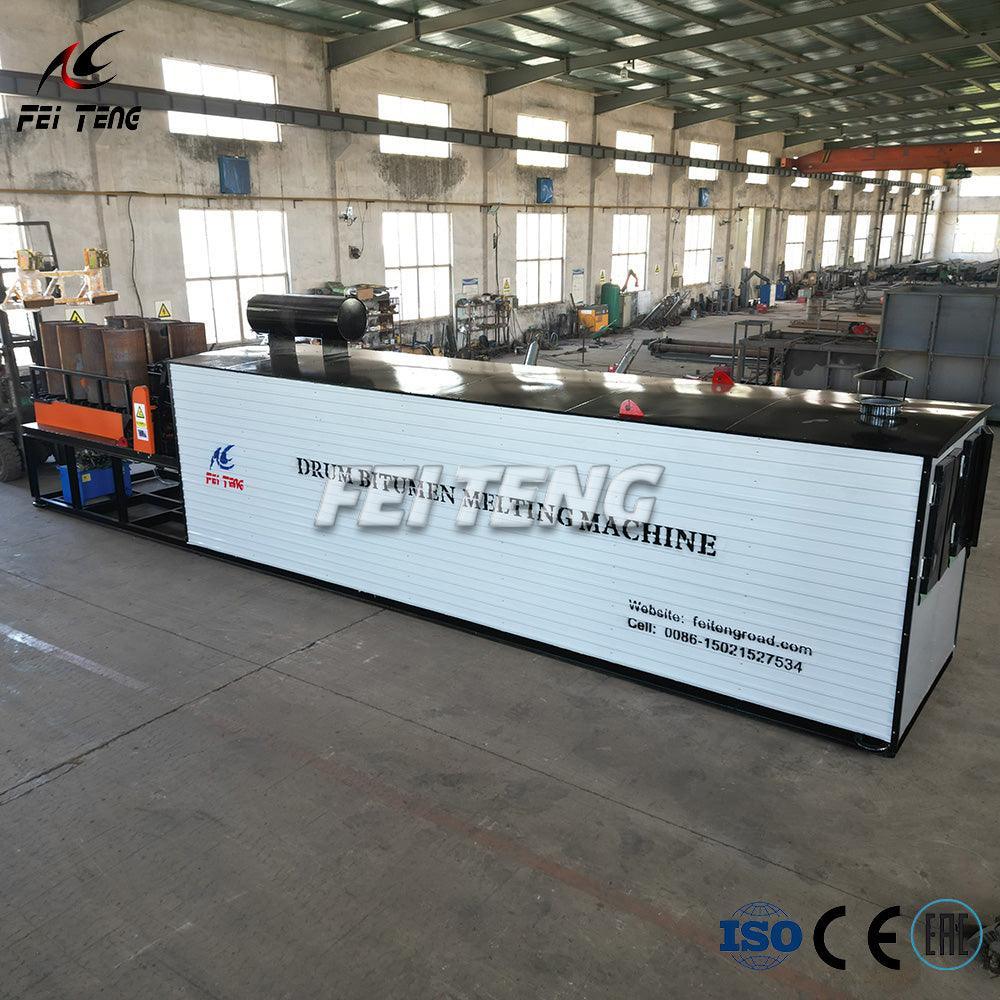

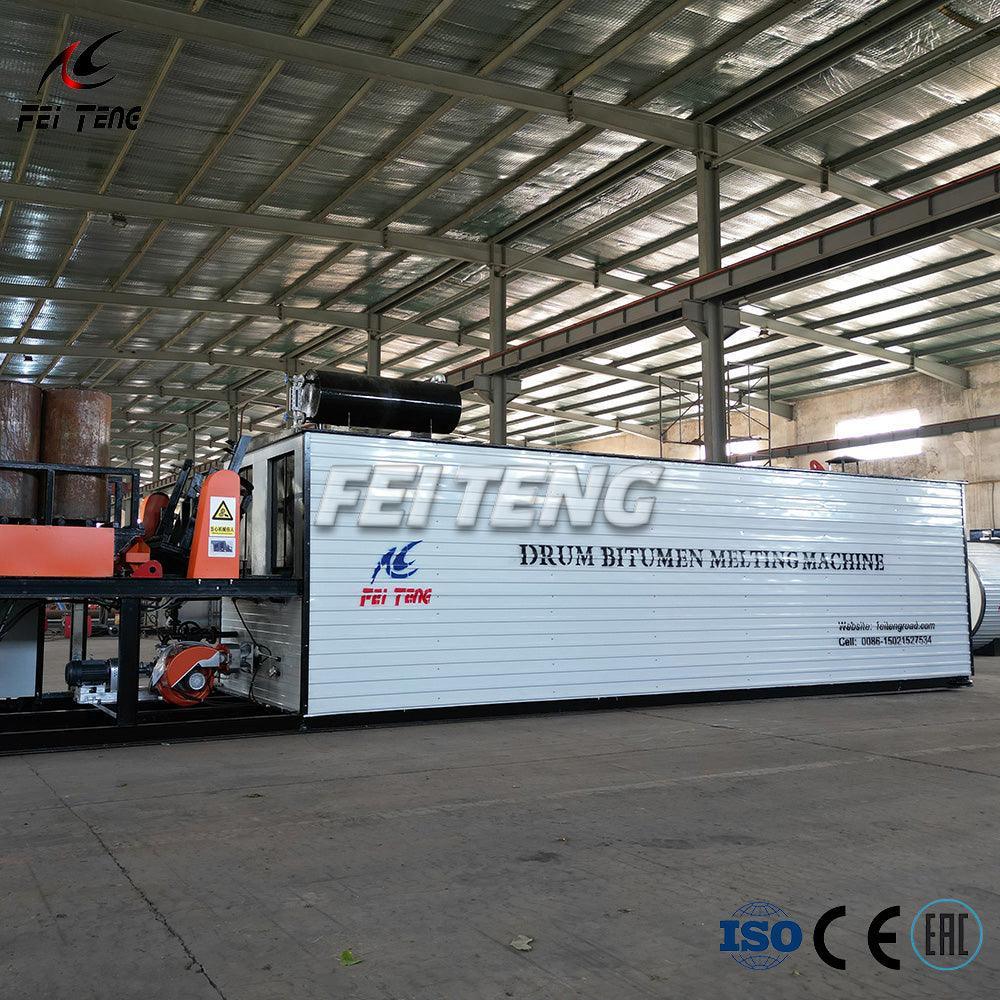

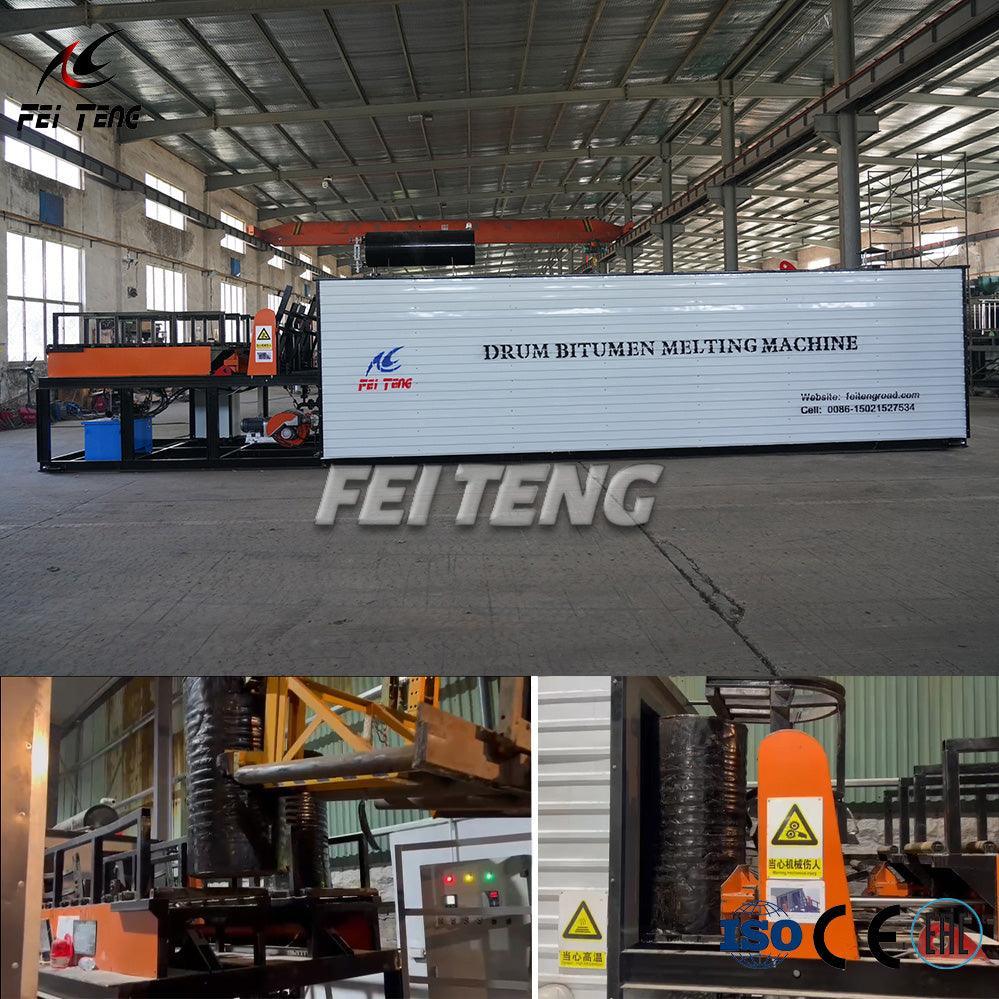

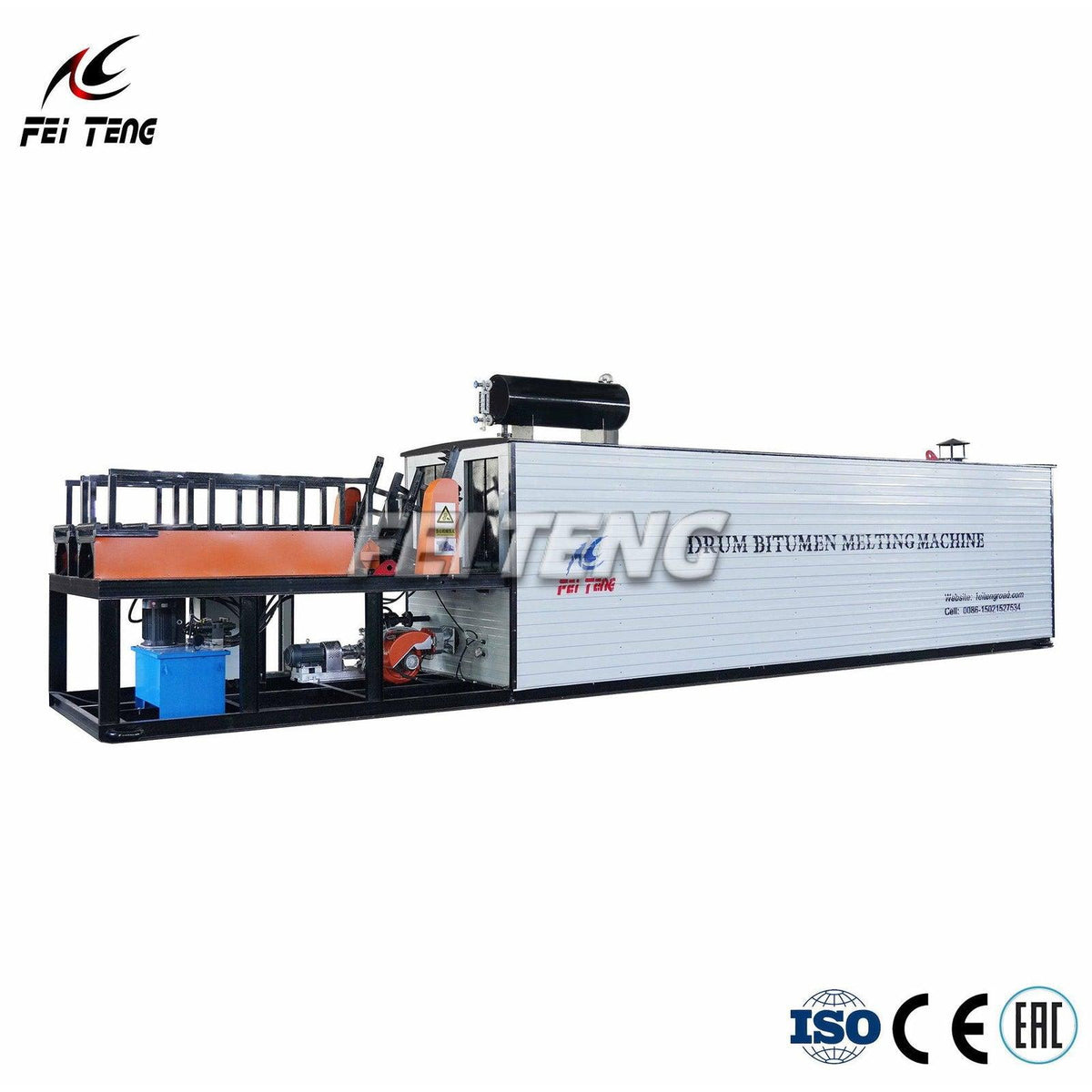

- The ZYDST series drum bitumen melting machine is a highly efficient and versatile equipment that is designed to melt and decant solid bitumen into a liquid state for further use.
- With its self-heating integrated structure, this machine combines a thermal oil boiler and a bitumen melting unit. Powered by a diesel oil burner, it uses hot air and thermal oil coils to heat and liquefy the bitumen, ensuring seamless operations.

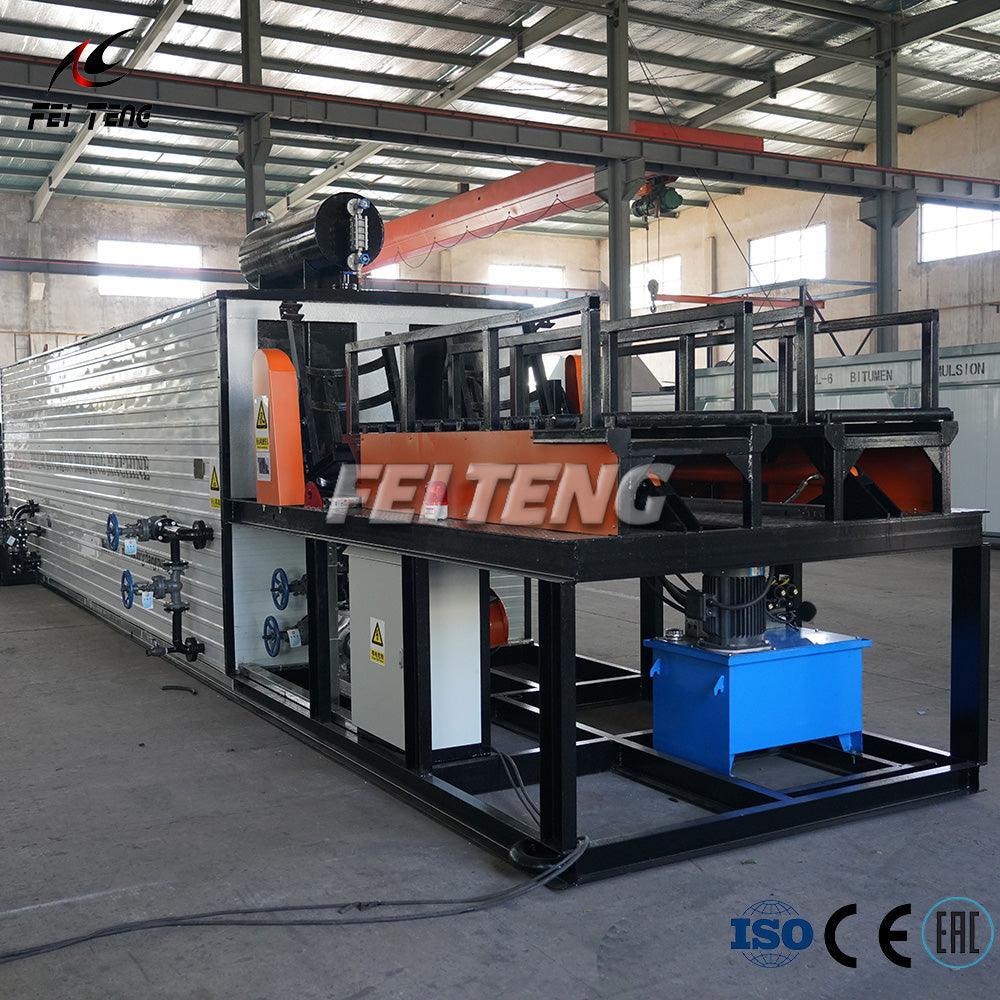

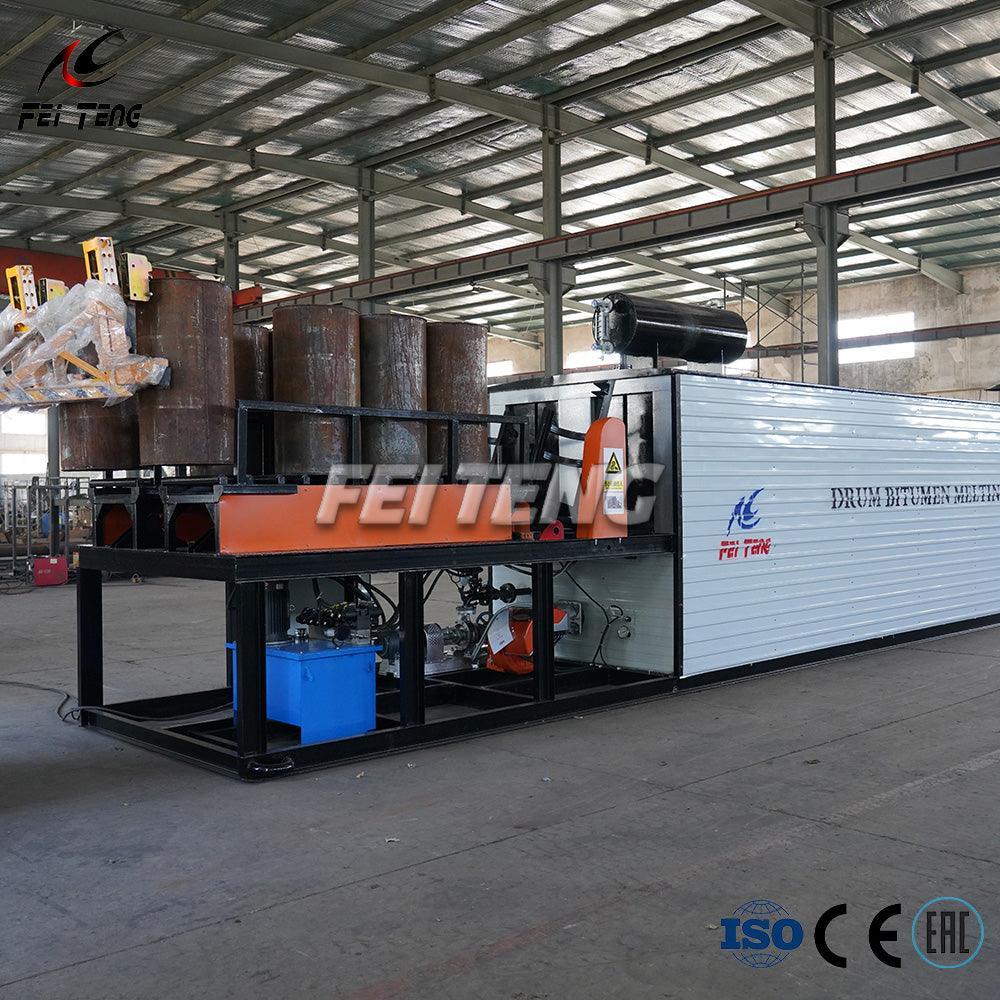

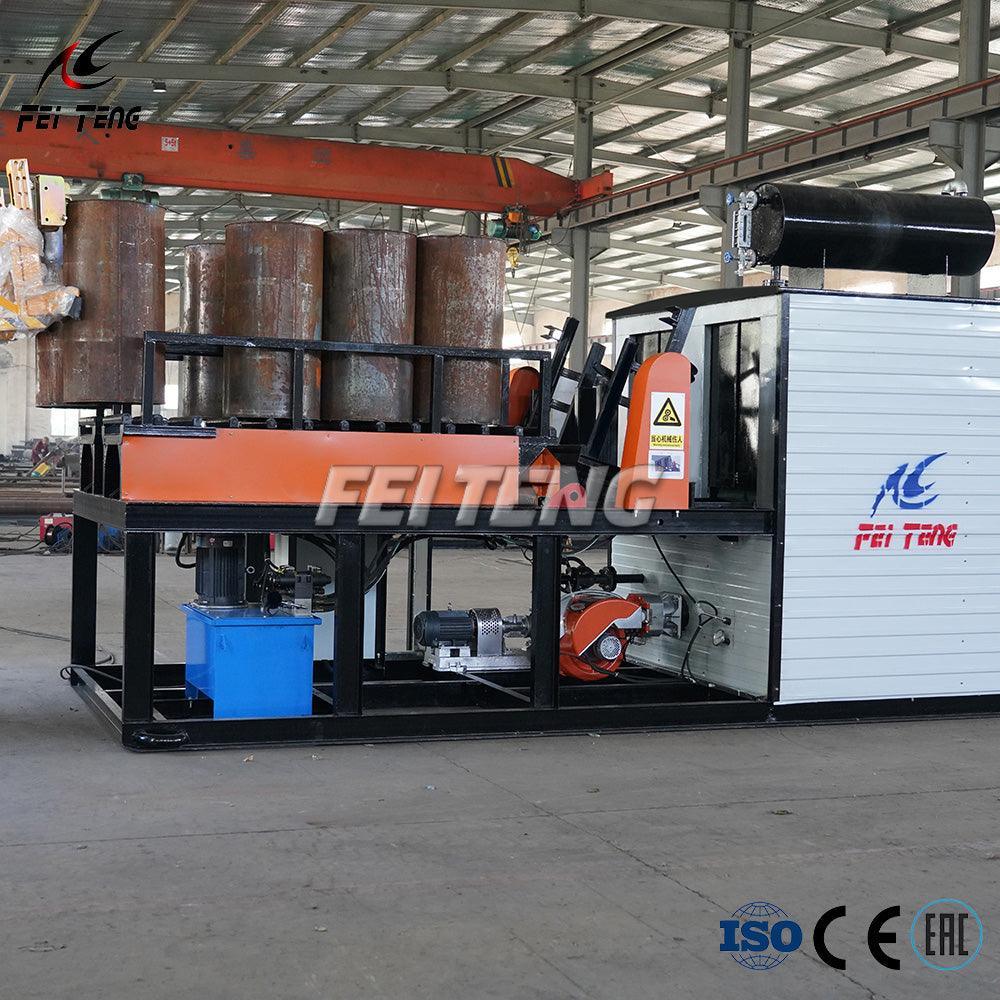

- With its automatic drum tipping technology and fast melting speed, this equipment can greatly reduce labor costs while improving production efficiency.
- Its closed structure and superior insulation make it an eco-friendly and cost-effective solution for drum packing operations.
Main Parameters
Model |
ZYDST-5 |
ZYDST-10 |
ZYDST-15 |
|---|---|---|---|
|
Production rate (t/h)
|
4-6(t/h)
|
8-10(t/h)
|
10-15(t/h)
|
|
Bitumen reservoir capacity (m³)
|
9(m³)
|
14(m³)
|
20(m³)
|
|
Drum quantity
|
18-22 drums
|
28-32 drums
|
42-48 drums
|
|
Sliding way
|
2 lines
|
2 lines
|
3 lines
|
|
Outer dimension (length× width× height)
|
9.45×2.25×2.52m
|
12×2.25×2.52m
|
12×3×2.52m
|
|
Total power(KW)
|
15.2KW
|
18.1KW
|
18.4KW
|
|
Bitumen pump brand
|
ShangGui (3GN60×2-46)
|
ShangGui (3GN80×2-36)
|
ShangGui (3GN80×2-36)
|
|
Bitumen pump flow (m³/h)
|
9.89m³/h
|
16.8m³/h
|
16.8m³/h
|
|
Bitumen pump power (KW)
|
3KW
|
5.5KW
|
5.5KW
|
|
Total heat exchange area (㎡)
|
72.7㎡
|
91㎡
|
120㎡
|
|
Diesel burner(KW)
|
120~600KW
|
170~850KW
|
170~850KW
|
|
Burner brand
|
Italy Baltur
|
||
|
Thermal oil working temperature (℃)
|
200-240℃
|
||
|
Drum residue removal rate
|
≤0.3%/drum
|
||
|
Thermal efficiency
|
≥90%
|
||
|
Heating method
|
Direct Heating with Fuel/ Gas; Indirect Heating with Thermal Oil
|
||
|
Adaptation to drum size (mm)
|
500-580mm
|
||
|
Bitumen temperature (℃)
|
110-140℃
|
||
|
Brands of various electrical components
|
Schneider
|
||
