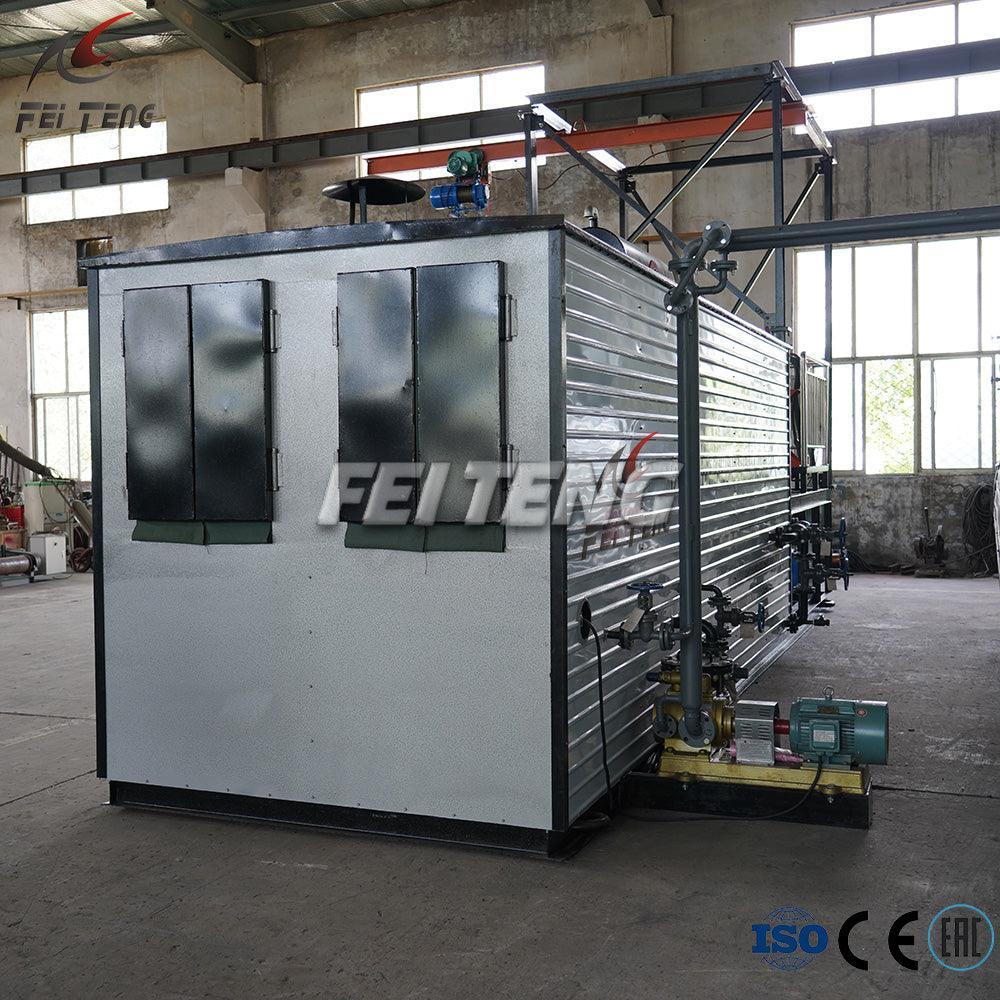

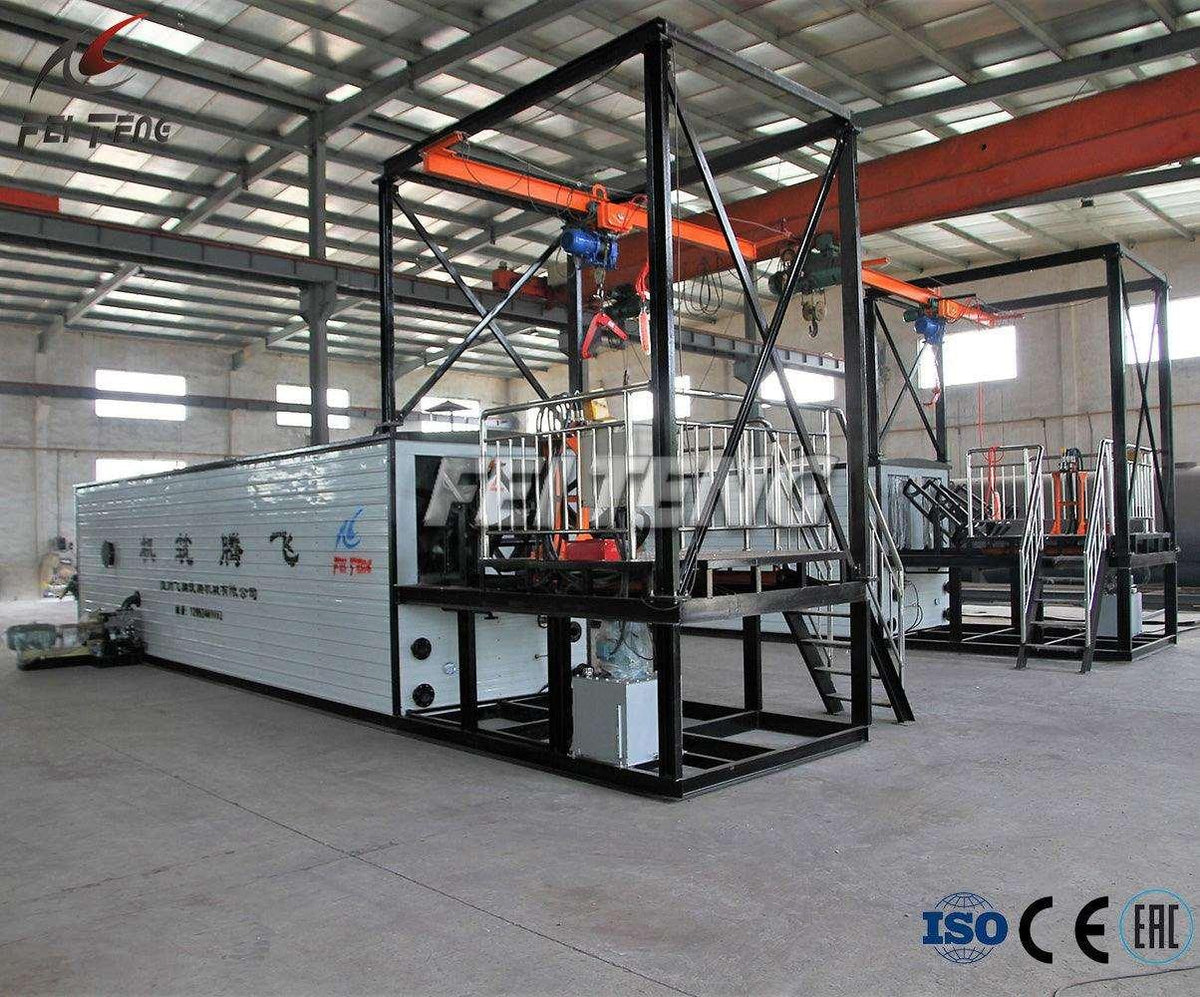

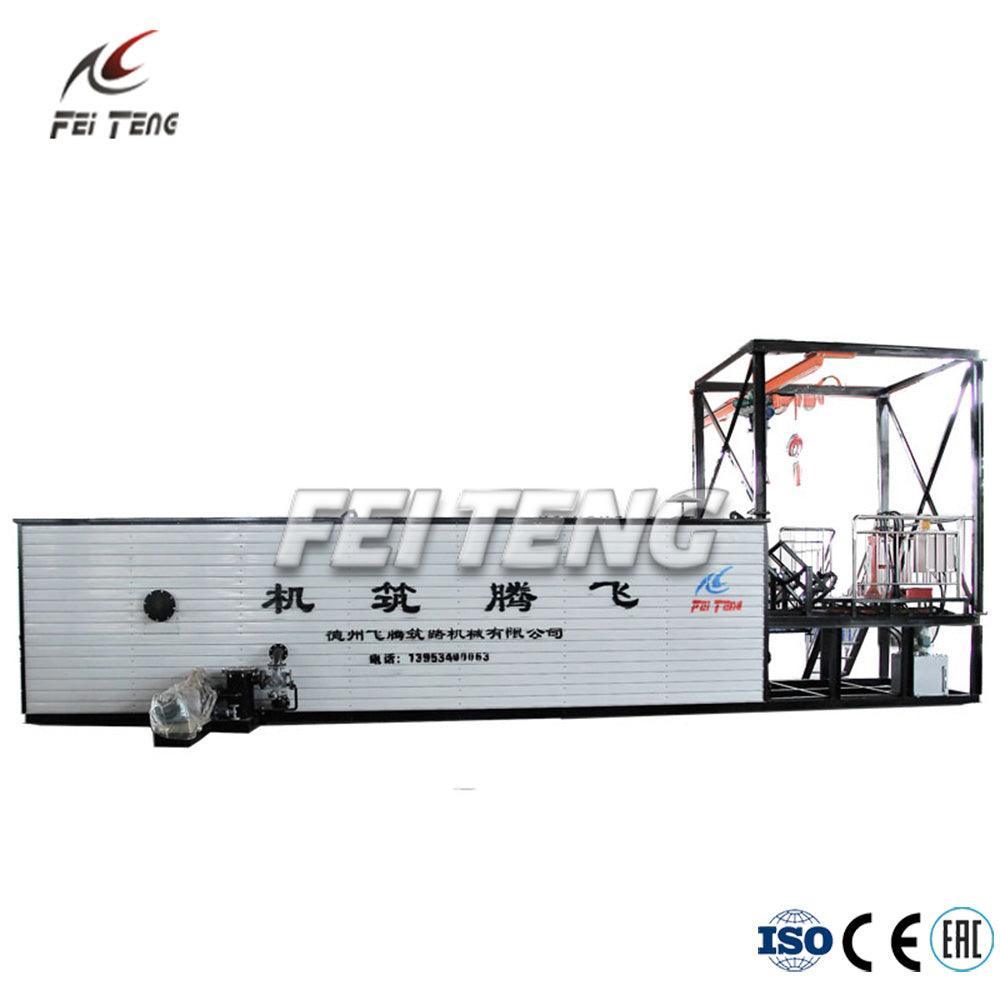

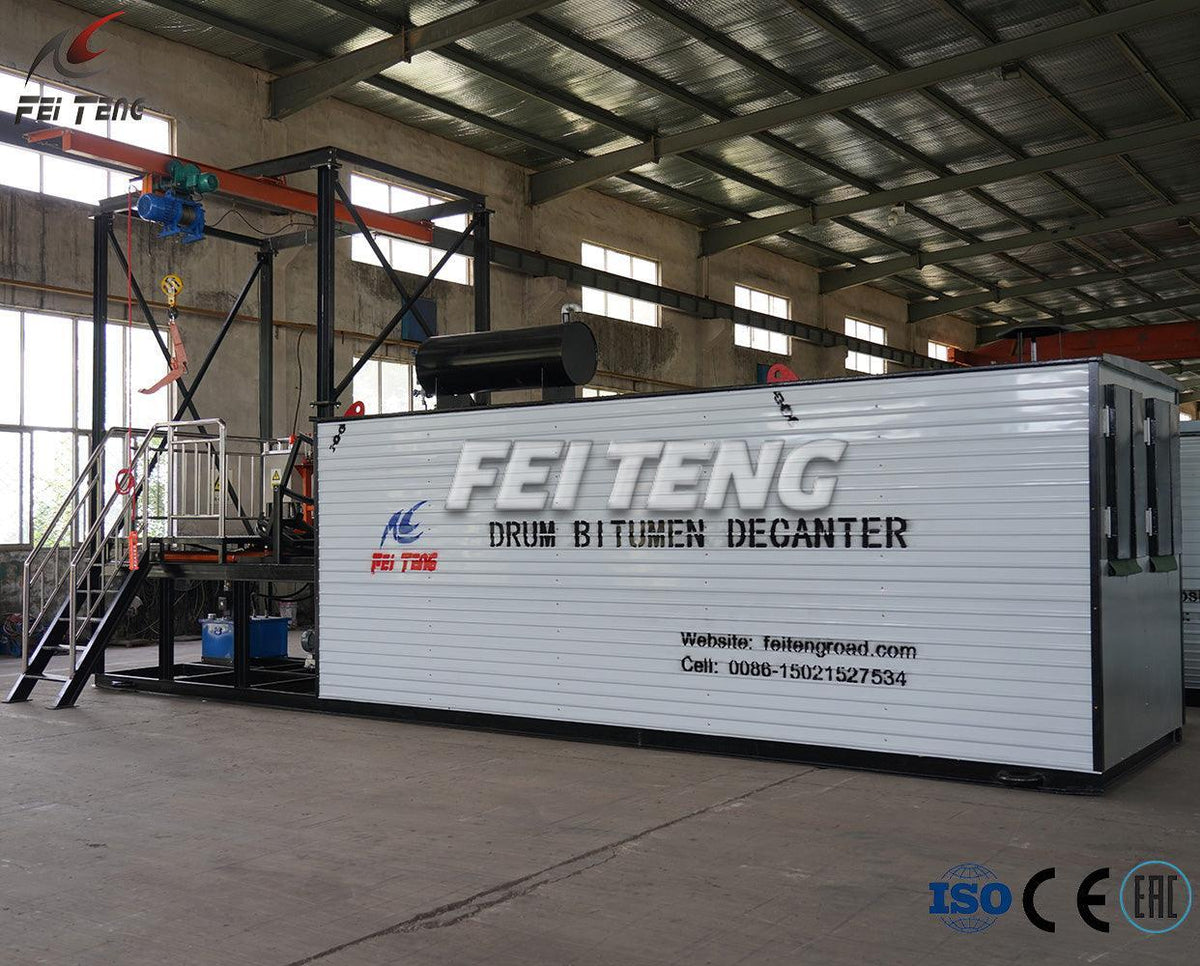

DLT Series Bitumen Melting Equipment (With Out Burner)

DLT Series Bitumen Melting Equipment (With Out Burner)

Size
Introducing our DLT-Series Bitumen Melter, utilizing thermal oil for precise heating. This equipment ensures superior heating quality with high efficiency, rapid dumping, and user-friendly operation. It streamlines production, minimizing bitumen waste and pollution. Its sleek design, compact layout, and dependable performance make it ideal for bitumen barrel removal across diverse work environments. Upgrade to our advanced bitumen decanter today for enhanced efficiency.

Our Advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Delivery&Shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

Our Service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requiremen

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

After Sale Service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

View full details

Main Parameters

Model
DLT-5
DLT-8
Production rate (t/h)
4-6(t/h)
8-10(t/h)
Bitumen reservoir capacity (m³)
9(m³)
14(m³)
Drum quantity
18-22 drums
28-32 drums
Sliding way
2 lines
2 lines
Outer dimension (length× width× height)
9.1×2.2×2.55m
12×2.2×2.55m
Total power(KW)
≈11KW
≈17KW
Thermal oil boiler(KW)
800KW
800KW

Equipment Structure Principle

  • Our product is designed with precision and innovation, adhering to a robust equipment structure principle:

    • Automatic Spring Door Sealed Box Structure: The heart of our equipment features an automatic spring door sealed box structure. This ingenious design ensures secure containment while allowing for efficient access. When it comes to loading, the drum is effortlessly raised via electrical hoisting.

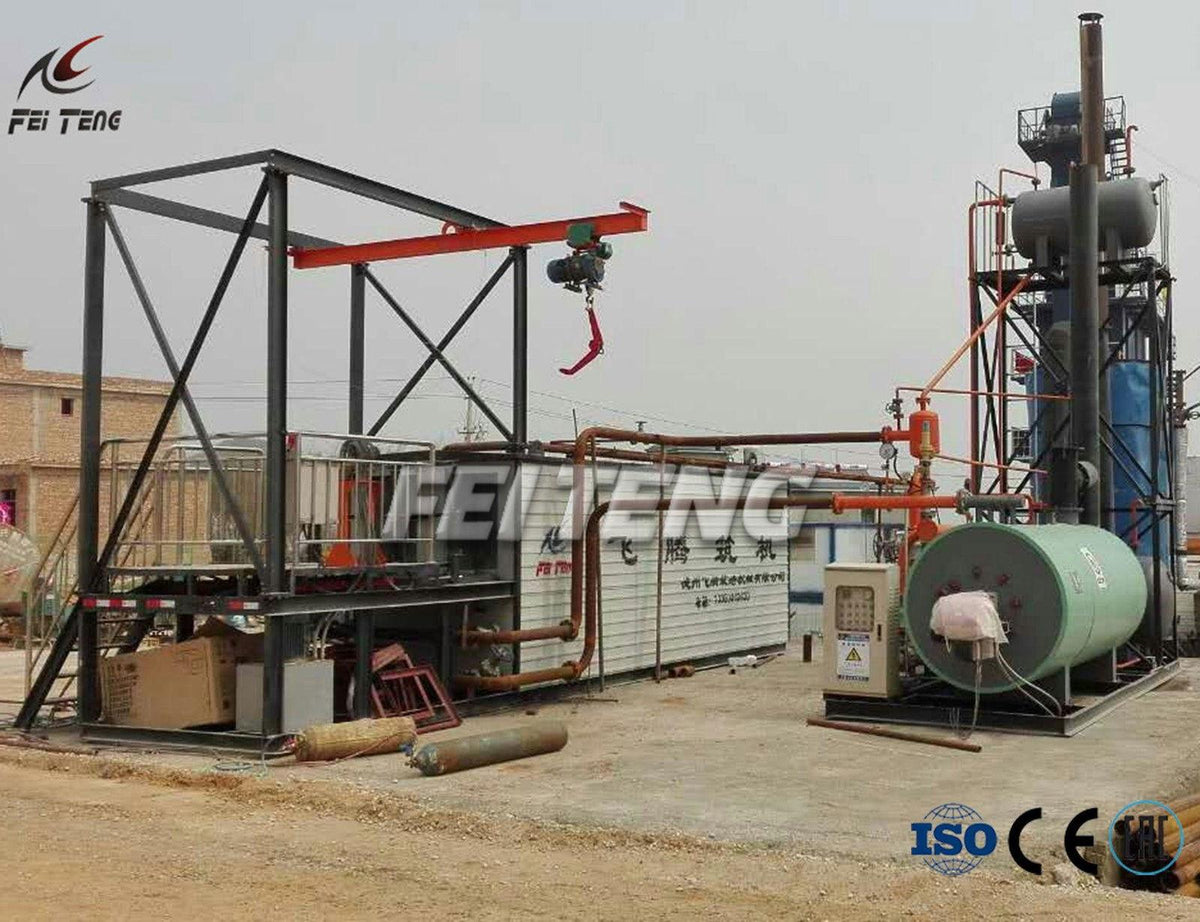

    • Hydraulic Propulsion: A hydraulic propeller is employed to push the drum plate into the melter. The heating source is none other than hot thermal oil, sourced from an external boiler, ensuring optimal heating performance.
    • Comprehensive Components: The equipment is composed of various essential components, including the melting tank, lifting system, tipping devices, asphalt drum plate, dripping asphalt collection system, hydraulic propulsion system, thermal oil heating system, bitumen pump, pipe system, and an electric control system.

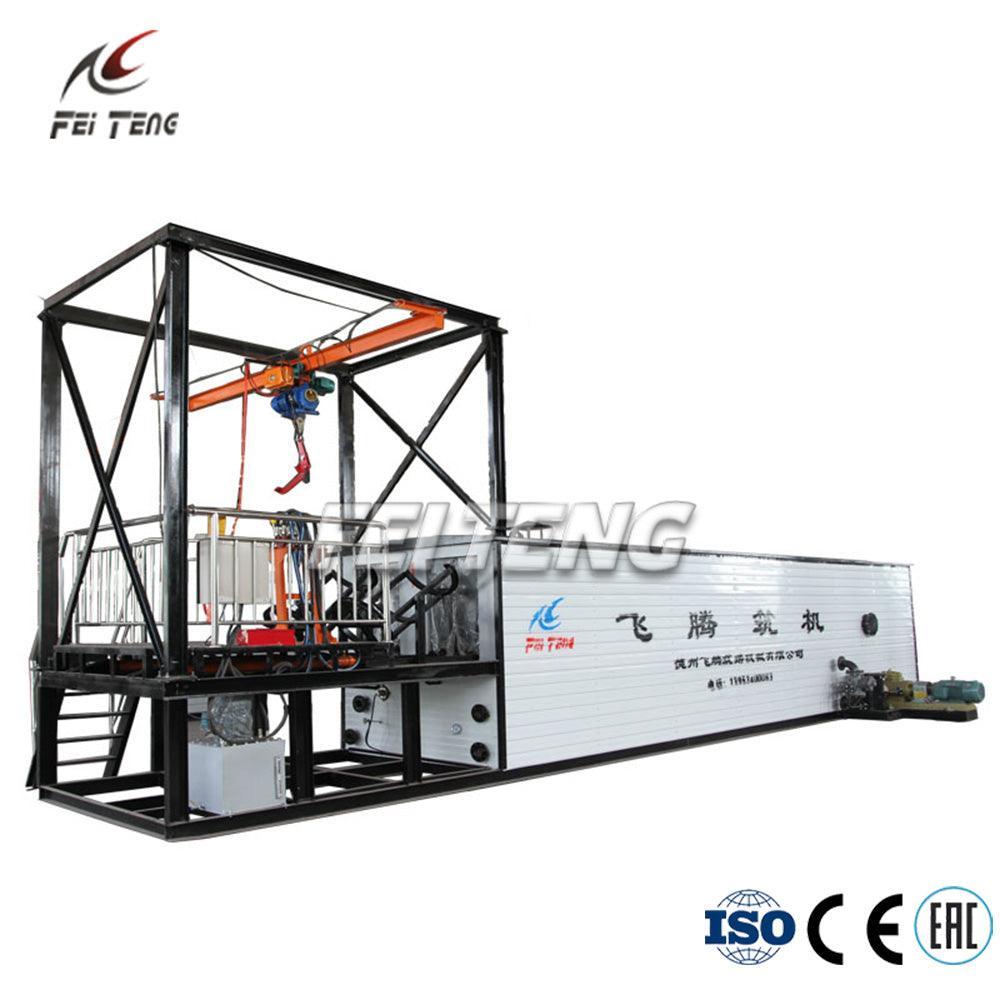

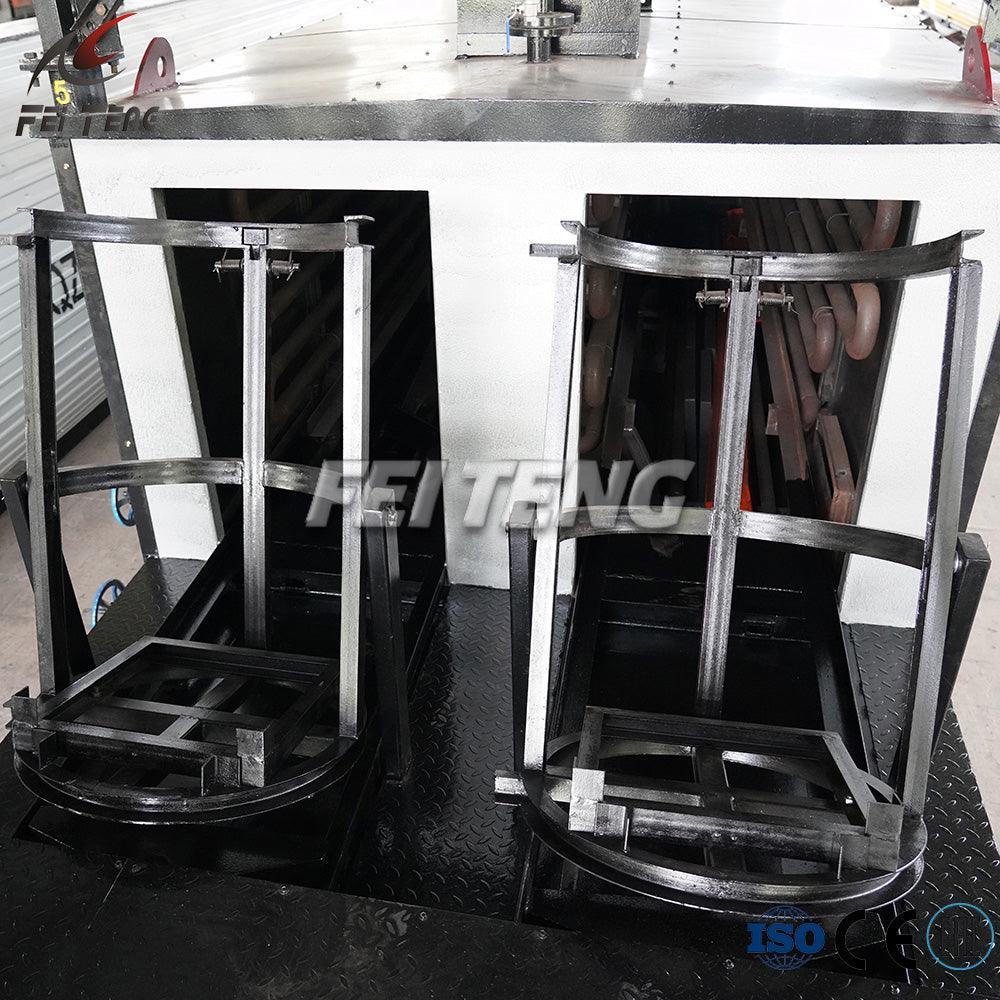

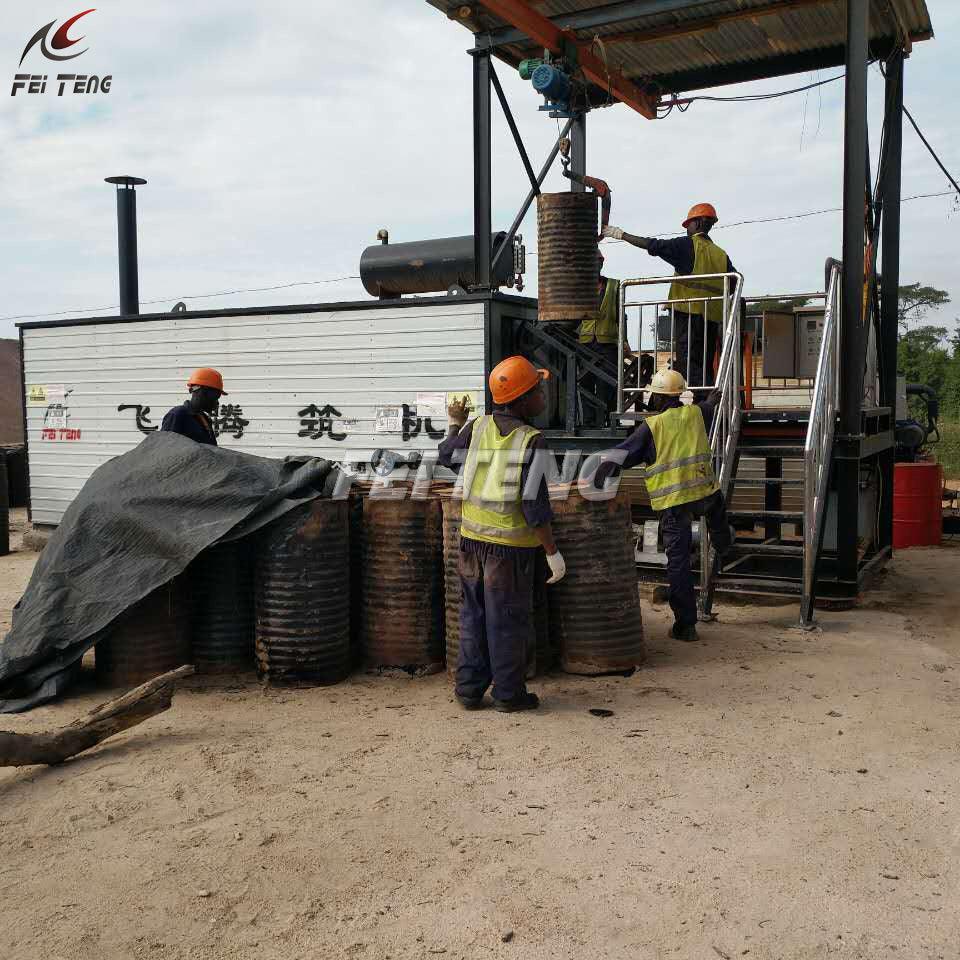

    • Efficient Lifting System: Our cantilever-style lifting system is designed for precision and efficiency. It raises the drum using a hoist, moves it horizontally, and positions it on the tipping device with the opening facing upward. Upon turnover, the drum descends into the drum plate with the opening facing downward. Subsequently, the hydraulic pusher advances the drum into the dumping room, while simultaneously expelling an empty drum through the outlet. This equipment operates seamlessly, offering continuous drum asphalt removal according to a specified frequency.
    • Dual Chamber Melting Tank: The melting tank is cleverly divided into two chambers. The upper chamber serves as the asphalt dumping chamber and is equipped with a heating coil. This coil efficiently exchanges heat with the drum through radiation, effectively melting the bitumen. Meanwhile, the lower chamber features a bottom heating coil, continuing to heat the bitumen until it reaches the desired pump temperature. Once the bitumen achieves the operational temperature and is free from moisture, it can be smoothly pumped into the storage tank. Our bitumen tube system is equipped with a filter device for the automatic removal of slag, ensuring uninterrupted operation.
    • Effortless Spring Doors: Convenient spring doors are installed at both the inlet and outlet of the melter. These doors are ingeniously designed to open upon the arrival of the asphalt drum and close automatically and swiftly after the drum passes through. This not only streamlines the entry and exit of the asphalt drum but also minimizes heat loss.
    • Precise Control: All these intricate processes are meticulously controlled through an electrical control cabinet. This control center is equipped with essential monitoring instruments and safety control devices to ensure the safe and efficient operation of the equipment.

Main Features

  • 1. Automatic Spring Door Sealed Box Structure: The equipment incorporates an innovative automatic spring door sealed box structure, ensuring secure containment. A powered electrical hoist efficiently lifts the drum, streamlining operations.

    2. Aesthetic Design: Our machine boasts a visually pleasing exterior, coupled with a rational and compact layout, enhancing usability. It facilitates ease of operation, reduces labor requirements, and guarantees high production efficiency.

    3. Stability and Reliability: Depend on its consistent and reliable performance in any working environment. This equipment eliminates bitumen waste and pollution, aligning with your eco-friendly goals.

    4. Rapid Melting: Experience unparalleled speed with a large thermal oil heating dissipation area, delivering swift heating and peak production efficiency. The heating coil group implements zonal independent control technology, optimizing the synchronization of decanting and melting speeds. Furthermore, thermal oil furnace exhaust is efficiently recycled, achieving exceptional energy utilization. The tank body features superior rock wool insulation, minimizing heat loss.

    5. Complete Bitumen Melting: Our machine ensures the thorough and efficient melting of bitumen, thanks to its ample heat storage and direct heating through thermal oil coils, leaving no room for waste.

    6. Automatic Slag Removal: The bitumen circulation tube has a filter device for hassle-free automatic slag removal.

    7. Environmentally Friendly: With its closed structure, our equipment is environmentally responsible, causing no pollution.

    8. Versatile Adaptability: It can be customized according to various sizes of bitumen barrels.

    9. Effortless Relocation: The modular design simplifies transportation and assembly, making relocation a breeze.

    10. User-Friendly Operation: Enjoy a humanized design that ensures straightforward operation, reduces labor intensity, and minimizes manual effort.

    11. Patents: Our equipment boasts innovative intellectual patents, including integrated design, barrel turnover design, and revolutionary barrel plate technology.

    Gone are the days of manual labor and bitumen waste. Our bitumen barrel turnover technology dramatically reduces labor intensity and prevents wastage during barrel relocation. Moreover, the innovative bitumen barrel plate technology eliminates the drawbacks associated with hydraulic pushers, such as resistance, slow progress, and barrel deformations. Trust in our cutting-edge technology for unmatched performance and efficiency.
