Collection: Bitumen Tank

Bitumen storage tank is a new type of asphalt heating and storage equipment developed by our company on the basis of fifteen years of experience in the field: it adopts high-efficiency heat-conducting oil as the heating medium, and heats the asphalt with unique bottom, local and layered heating process, which realizes the rapid warming and warming according to the quantity.

The heat source is coal-fired, oil-fired, gas-fired thermal oil boiler; the heating method is thermal oil conduction heating.

Asphalt storage tank working principle: thermal oil under the action of the thermal oil pump in the thermal oil pipeline system for closed loop liquid phase forced circulation, will contain high temperature heat transfer of thermal oil to the heat equipment, heat transfer to the low temperature asphalt, so that the asphalt warming.

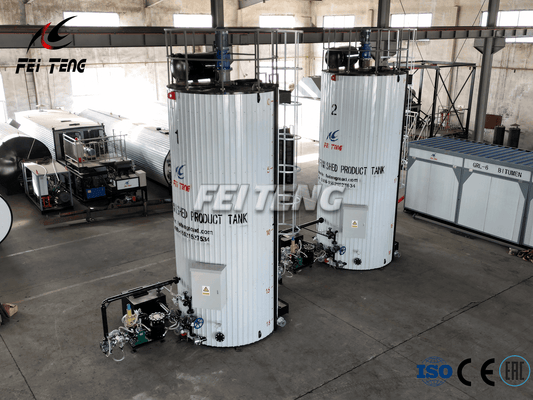

 Bitumen Storage Tank

The bitumen storage and heating tank is essential equipment for storing and heating high-temperature asphalt. Our company specializes in manufacturing bitumen storage tanks with two heating options:

  1. External thermal oil boiler heating asphalt storage tank – Uses an external thermal oil boiler system to maintain optimal asphalt temperature.
  2. Self-heating asphalt storage tank – Available in two options:

Our high-efficiency bitumen storage tanks are designed for energy-saving asphalt heating, ensuring stable and reliable bitumen storage for paving, roofing, and asphalt production.

  • Optional "tank in a tank" layout, large tank with a small tank, small tank asphalt heating speed is very fast, with how much heating, saving fuel, asphalt is not repeated heating.
    Optional multi-functional bitumen pump, a pump for multiple uses, can be unloaded into the tank and can be pumped out for external supply, but also internal circulation to assist in uniform heating, high, low oil design, high port asphalt temperature uniformity, low port can be emptied tank.

  • Optional powerful mixing unit for emulsified asphalt storage, SBS modified bitumen development, rubber asphalt development, mixing unit can effectively prevent the additives in the modified asphalt segregation, precipitation.
    Can be customized according to the different needs of customers with different sizes of round tanks, square tanks, square tanks can be in a limited space to obtain the maximum effective volume.
