Feiteng

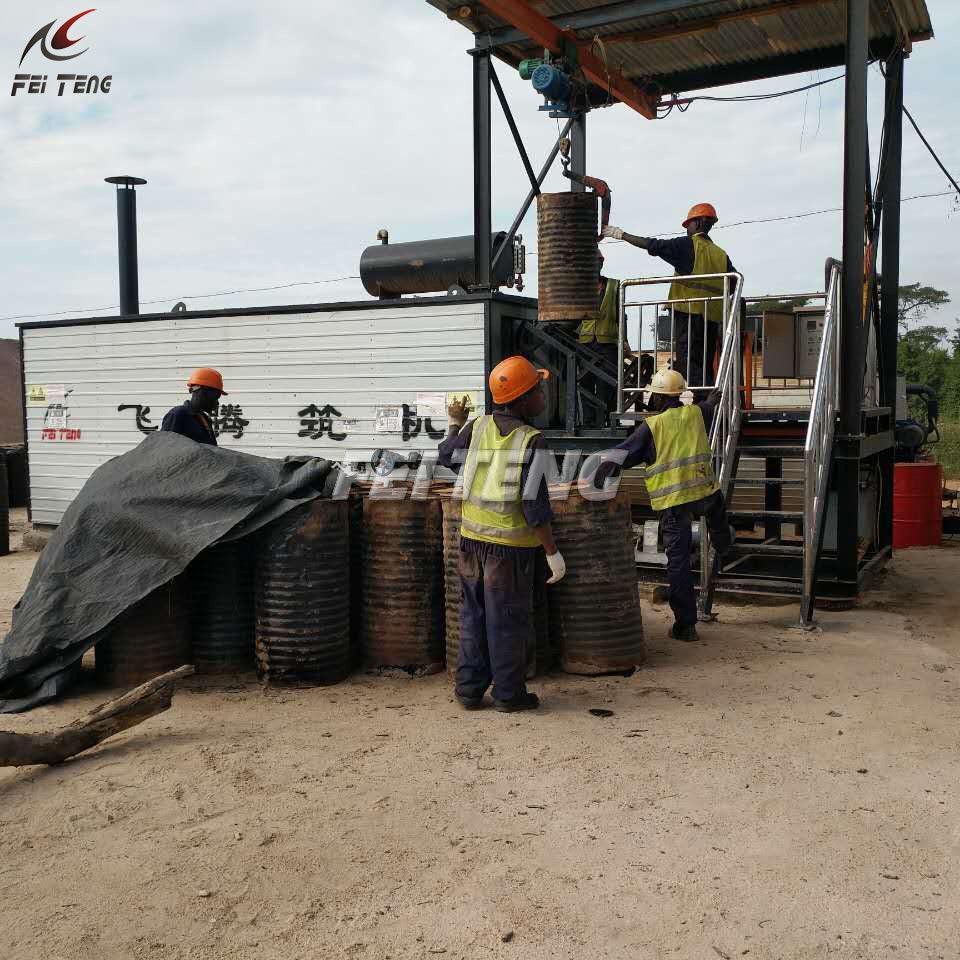

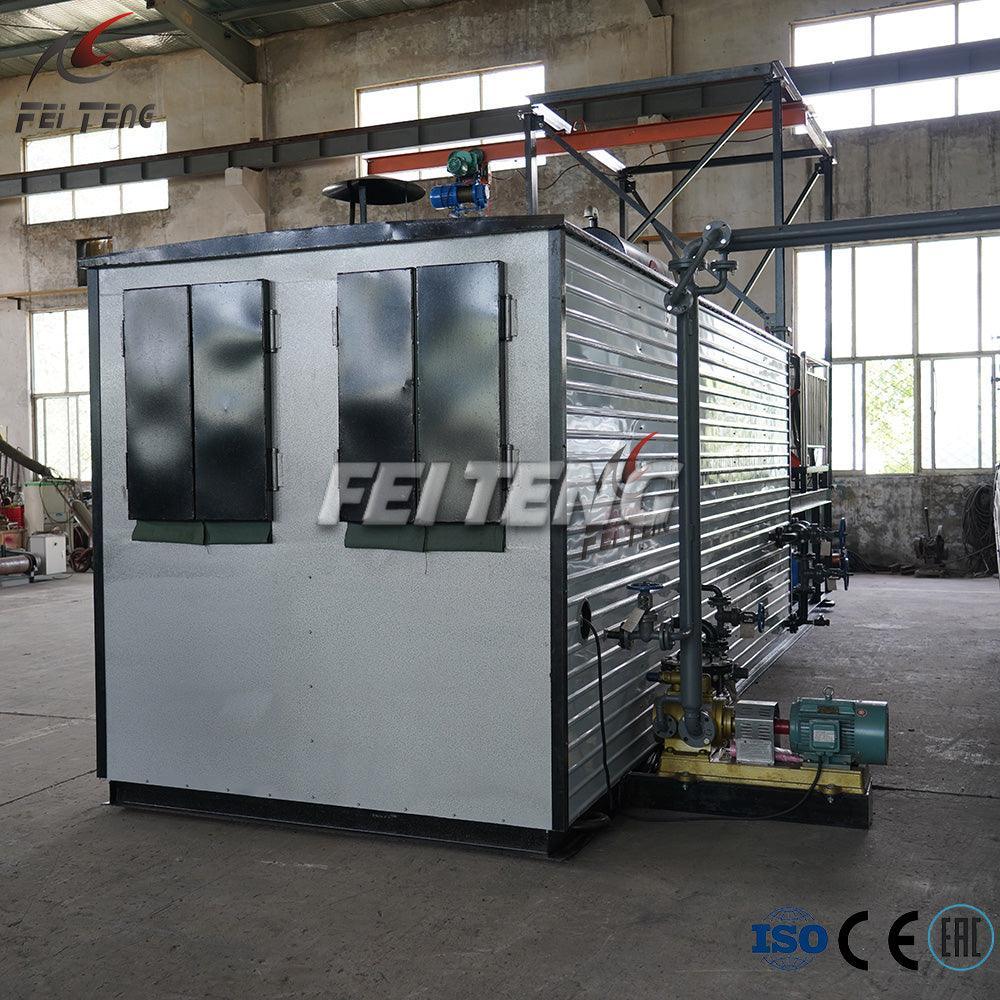

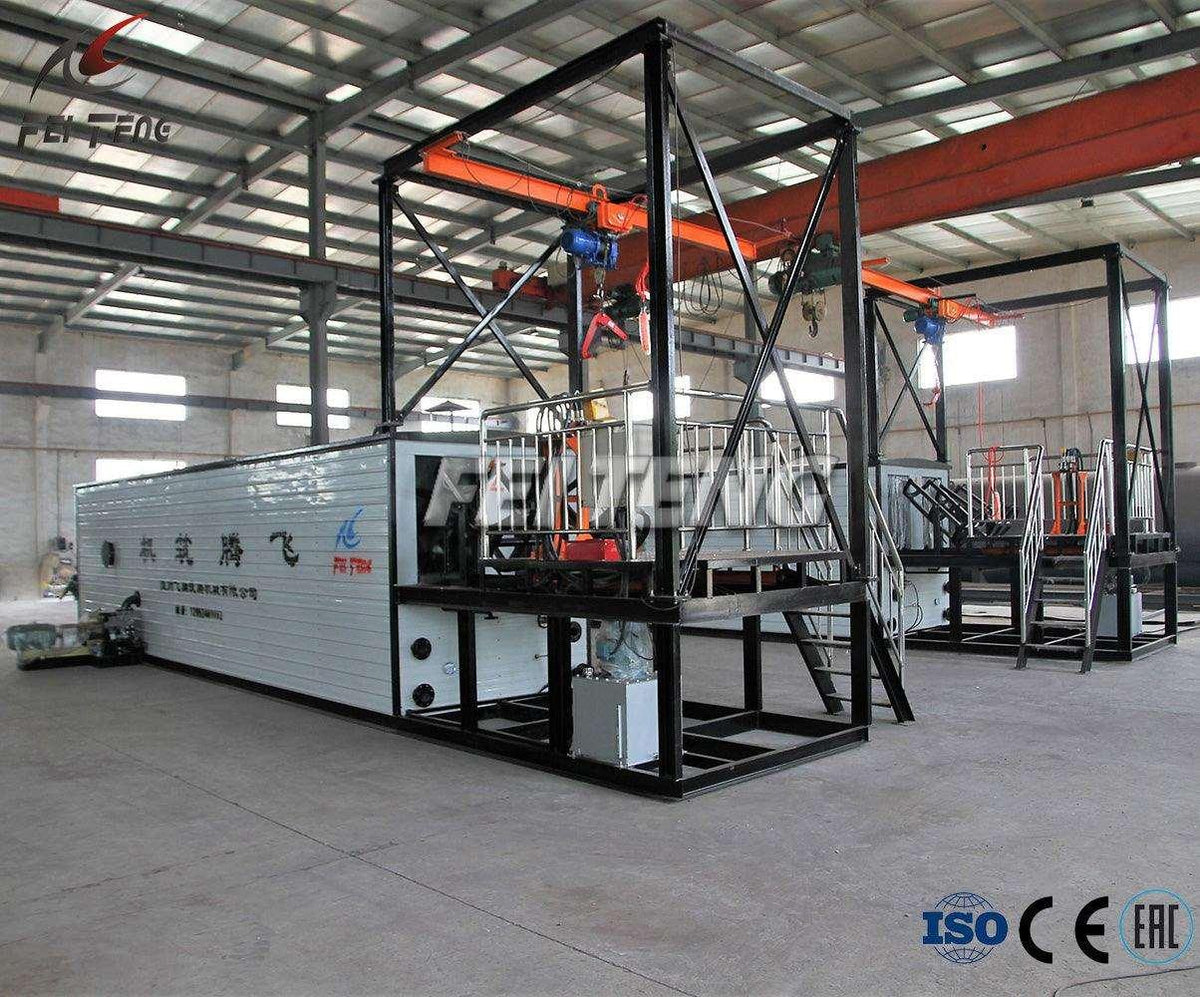

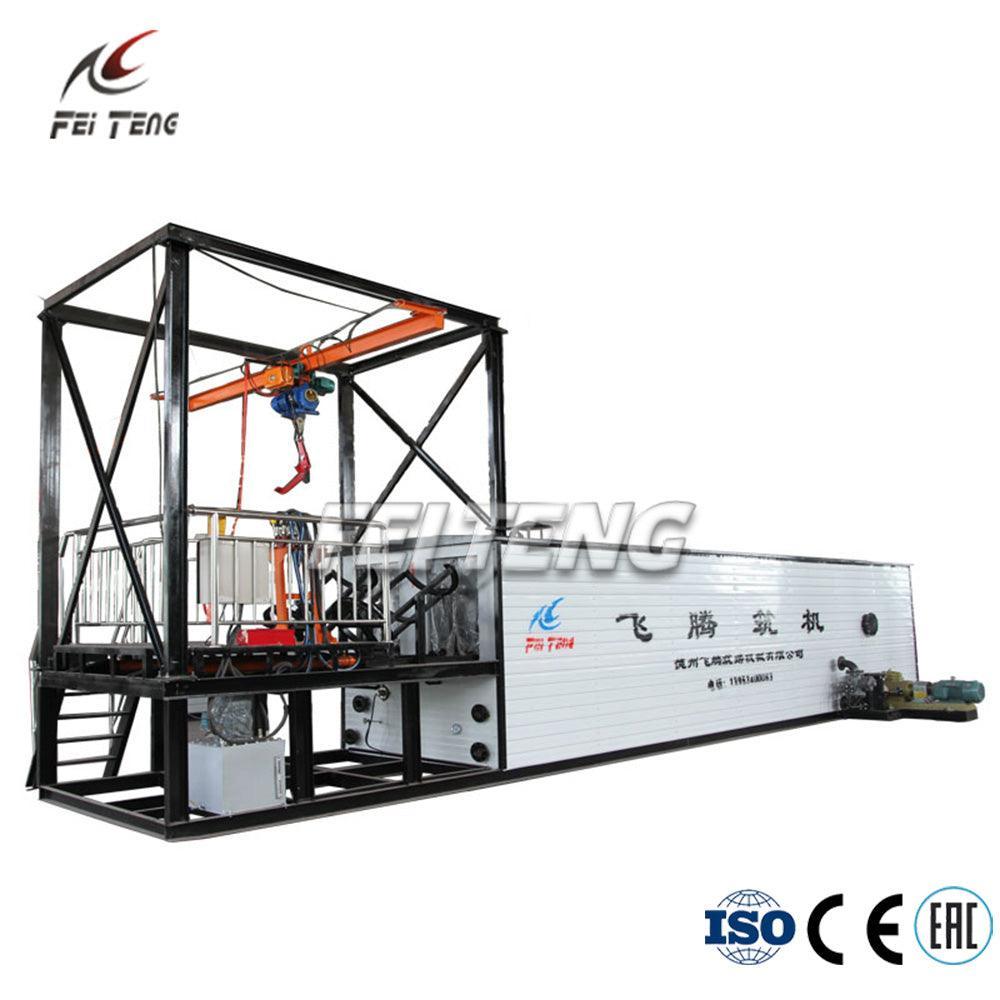

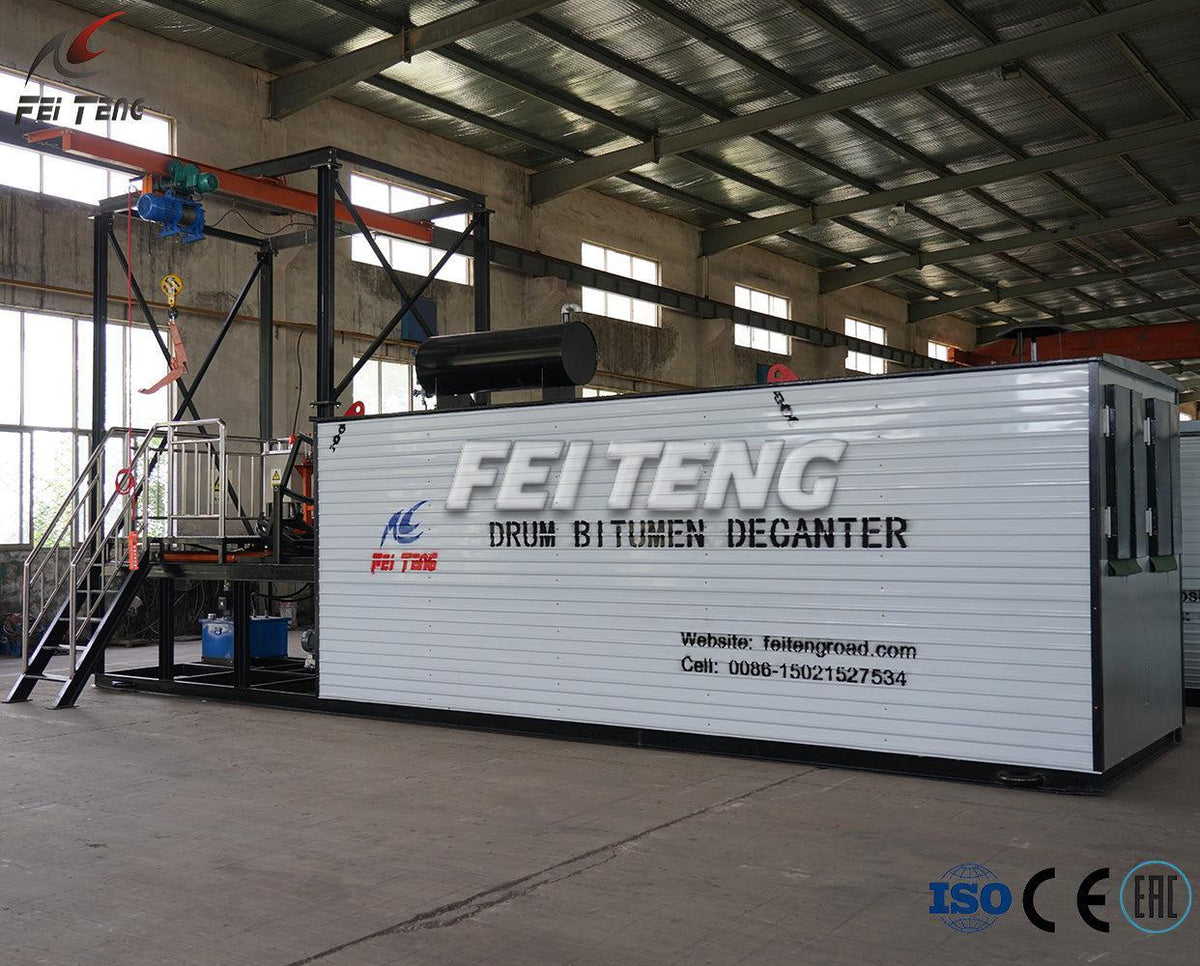

YDST Series Bitumen Decanting Machine

YDST Series Bitumen Decanting Machine

Size

Contact form

Our Advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Delivery&Shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

Our Service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requiremen

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

After Sale Service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

View full details

Description

  • The YDST series bitumen melting machine developed by our company is a self-heating integrated structure.  This equipment perfectly combines the thermal oil boiler with the melting equipment.
  • The equipment uses a diesel burner as a heat source, the barrel bitumen is heated and dumped by hot air and by the thermal oil coils, and then melted into a liquid state.
  • The machine can guarantee the quality of bitumen heating. In addition to keeping the advantages of DLT series equipment, it has higher thermal efficiency, smaller occupancy, easier installation, more convenient transfer, and lower transportation cost than DLT series equipment.
  • The equipment has a beautiful appearance, reasonable and compact arrangement, stable and reliable performance, and is suitable for the production of bitumen barrel removal under various working conditions.

Main Parameters

Model
YDST-5
YDST-10
Production rate (t/h)
4-6(t/h)
8-10(t/h)
Bitumen reservoir capacity (m³)
9(m³)
14(m³)
Drum quantity
18-22 drums
28-32 drums
Sliding way
2 lines
2 lines
Outer dimension (length× width× height)
9.45×2.25×2.52m
12×2.25×2.52m
Total power(KW)
15.2KW
18.1KW
Bitumen pump brand
ShangGui (3GN60×2-46)
ShangGui (3GN80×2-36)
Bitumen pump flow (m³/h)
9.89m³/h
16.8m³/h
Bitumen pump power (KW)
3KW
5.5KW
Total heat exchange area (㎡)
72.7㎡
91㎡
Diesel burner(KW)
250~600KW
200~850KW
Burner brand
Italy Baltur
Thermal oil working temperature (℃)
200-240℃
Drum residue removal rate
≤0.3%/drum
Thermal efficiency
≥90%
Heating method
Direct Heating with Fuel/ Gas; Indirect Heating with Thermal Oil
Adaptation to drum size (mm)
500-580mm
Bitumen temperature (℃)
110-140℃
Brands of various electrical components
Schneider
    • 1. Rapid Melting Speed: Our advanced zonal independent control technology allows precise heat distribution, synchronizing decanting and melting speeds. By reusing exhaust heat from the diesel oil burner, we achieve high energy utilization. The built-in heating combustion chamber facilitates direct heat transfer, minimizing heat loss. Thanks to these features, our machine guarantees fast and efficient melting.
    • 2. Environmentally-Friendly Design: We prioritize environmental protection with our closed structure, preventing pollution and minimizing emissions. You can trust that our bitumen melting machine meets the highest standards of eco-friendliness.
    • 3. Complete Bitumen Removal: Our equipment ensures thorough removal of bitumen, leaving no waste behind. The dumping device's large heat storage and direct heating of each drum by thermal oil coils guarantee complete decanting. Say goodbye to residual bitumen and maximize your operational efficiency.
    • 4. Versatile Adaptability: Our machine accommodates drums of various shapes, providing a solution for your specific needs. You can rely on its flexibility and adaptability to meet different requirements.

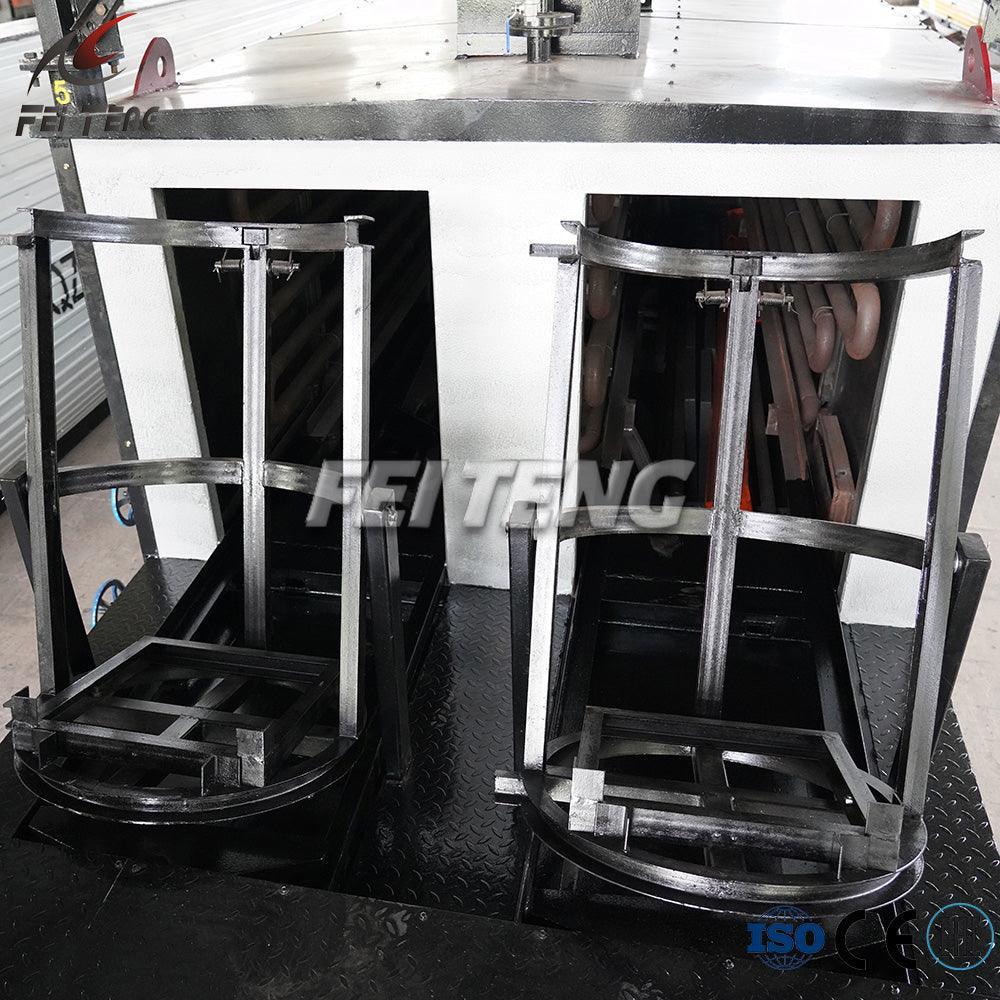

    • 5. Automated Convenience: Embrace automation with our advanced features, including automatic drum tipping, pushing, and retraction. Our latest tipping technology allows drums to seamlessly enter the tipping device, automatically flip, and promptly exit, reducing labor costs significantly. Benefit from a streamlined process and save valuable time and resources.
    • 6. Easy Relocation: Our modular design ensures hassle-free transportation and assembly. Enjoy the convenience of easy relocation, allowing you to adapt to changing project demands effortlessly.

Choose the ZYDST Bitumen Melting Machine for superior performance, efficient operations, and environmental responsibility. With its advanced features and exceptional reliability, it's your ultimate solution for bitumen melting and decanting. Experience seamless processes and maximize your productivity today.
