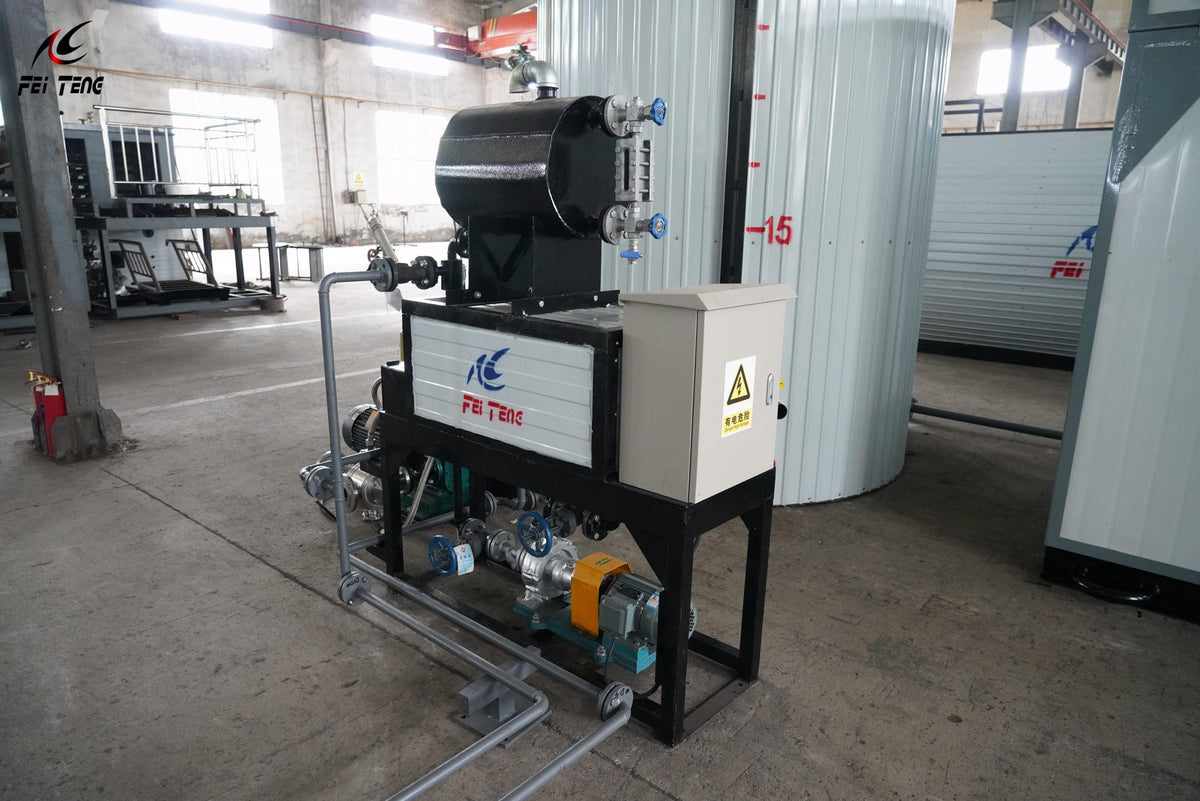

• Automatic Electric Thermal Oil Heater Skid-Mounted Unit

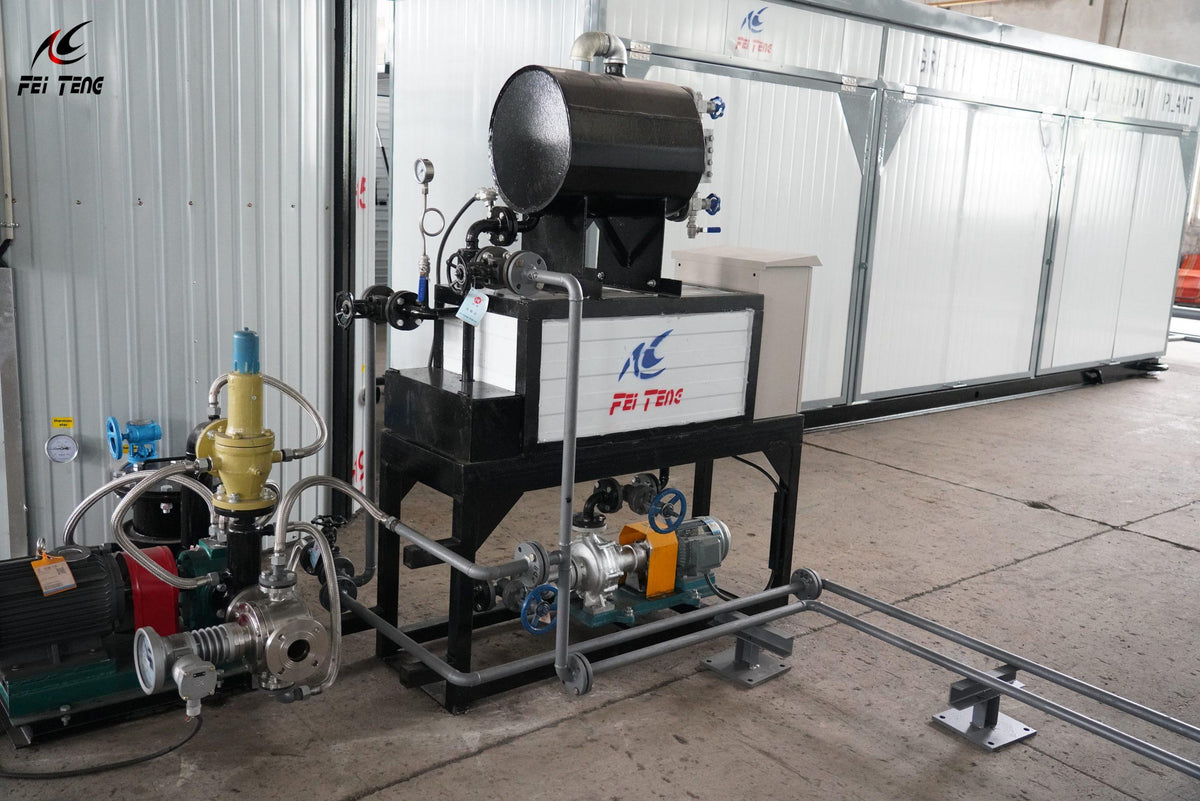

  • Feiteng Electric Bitumen Heater Control Cabinet and Pump Details

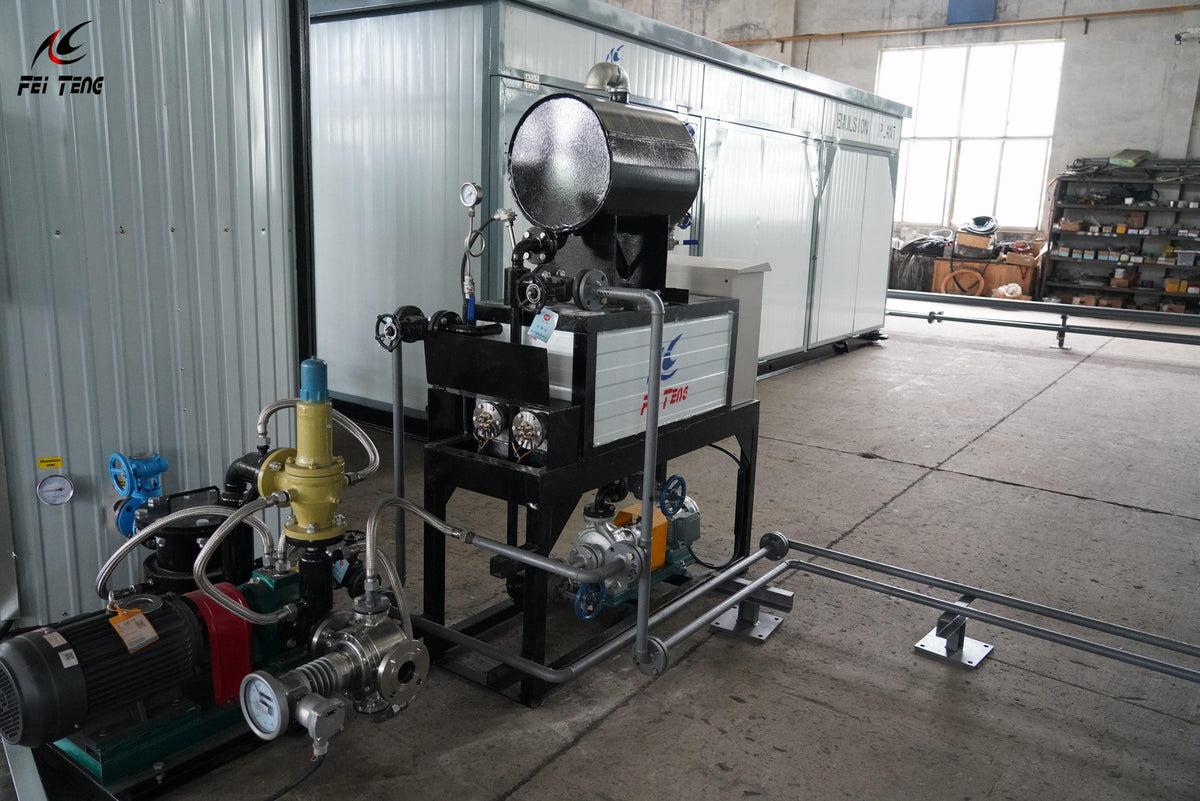

  • Electric Heat Transfer Oil Furnace for Asphalt Plant Trace Heating

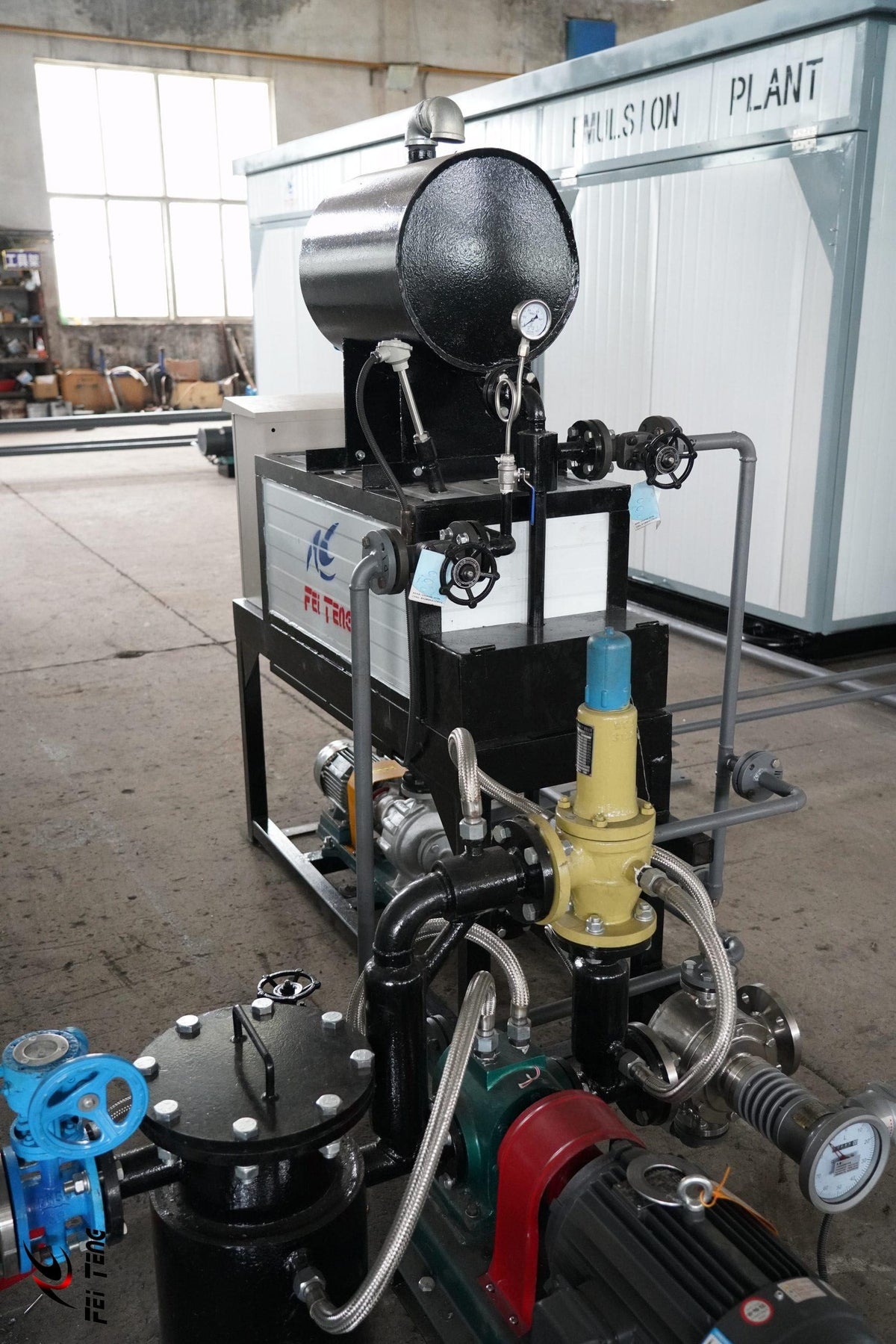

  • Industrial Electric Bitumen Heater Expansion Tank and Piping
1 4

Feiteng

자동 전기 열매체유 가열기 시리즈 (스키드 장착형)

자동 전기 열매체유 가열기 시리즈 (스키드 장착형)

Feiteng 자동 전기 열매체유 가열기 시리즈는 도로 건설 산업을 위해 특별히 설계된 소형 고효율 가열 솔루션입니다. 대형 석탄 또는 디젤 보일러와 달리 이 전기 장치는 열매체유(열 전달유)를 깨끗하고 정밀하며 빠르게 가열합니다.

이는 역청 파이프라인(추적 가열), 소형 역청 탱크 또는 실험실 아스팔트 장비에 완벽한 동반자입니다. 고온 열매체유를 순환시켜 노화 또는 코킹 위험 없이 역청을 액체 상태로 유동성 있게 유지합니다.

귀사의 도로 건설 솔루션을 완성하십시오:

전체 세부 정보 보기

제품 소개

The Industrial Electric Thermal Oil Heater is a compact, purpose-built thermal oil circulation heating system engineered specifically for asphalt and bitumen processing applications. Rather than attempting to replace large fuel-fired boilers, this system is designed to solve a critical yet often underestimated problem in asphalt plants: localized heating for pumps, valves, unloading systems, and short-distance pipelines.

By functioning as an independent Micro Thermal Station, it operates separately from the main boiler, using electric energy to rapidly heat and circulate thermal oil, delivering heat precisely where it is needed.

주요 기능 및 장점

  • Targeted Local Heating

    Actively maintains bitumen fluidity in pumps and valves while consuming only a fraction of the energy of a full plant boiler.

  • 독립형 마이크로 스테이션

    Operates autonomously for cold-weather startups or intermittent production schedules when the main boiler is offline.

  • Precision PID Control

    Industrial-grade temperature modulation maintains stability between 160°C – 200°C, preventing oil coking and asphalt aging.

  • Skid-Mounted Integrity

    Integrated expansion tank, pump, and control cabinet on a heavy-duty skid for plug-and-play commissioning.

Main Parameters

Heating Power20–21.5 kW (Optimized for localized heat tracing)
Oil Pump Flow12.5 m³/h (Prevents oil coking)
Temp RangeAmbient – 300°C (PID precision control)
Power Supply380V / 50Hz / 3-Phase
Inlet / Outlet SizeDN25 (1 inch) Flange
Heating MediumThermal oil (Organic fluid)
System ComponentsHeater, Pump, Expansion Tank, Control Cabinet

Critical Equipment Protection

By preheating solidified bitumen before startup, the system prevents excessive mechanical load on pumps, motors, and couplings. In practical asphalt engineering, the majority of pump and motor failures are caused by cold starts. This unit therefore acts not merely as a heater, but as an insurance device that protects high-value equipment and ensures continuous, reliable production.
