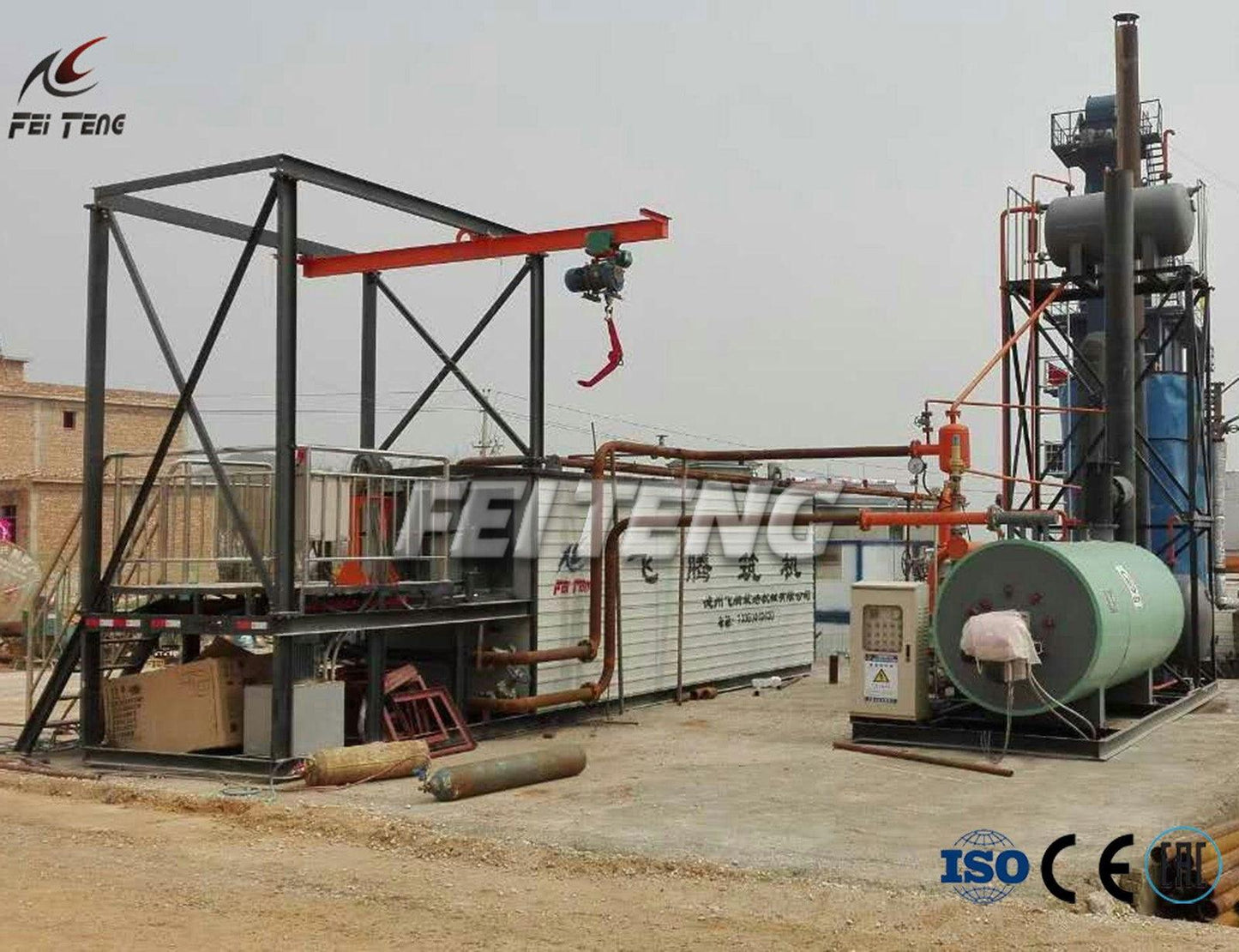

نظام YDST لتفريغ البيتومين من البراميل ذاتي التسخين
Key Technical Parameters
The following parameters are organized from the supplied YDST-10 product note. Final configuration should be confirmed according to drum diameter, power supply, site layout, and project capacity requirements.
| Item | Specification |
|---|---|
| Model | YDST-10 / YDST Series |
| Product Type | Self-heating drum bitumen decanter |
| Heating Structure | Integrated thermal oil boiler and drum bitumen decanter |
| Heating Source | Diesel oil burner |
| Heating Method | Hot air heating, thermal oil coils, built-in heating furnace, and flue heat reuse |
| Production Rate | 8–10 t/h when ambient temperature is above 25°C |
| Tank Volume | 15m³ |
| Drum Quantity | 32 drums when drum diameter is 500mm |
| Applicable Drum Diameter | Drum quantity varies according to drum diameter; 500mm diameter can load 32 drums |
| Dimension | 12 × 2.2 × 2.54m |
| Total Power | Approximately 20kW |
| Power Supply | Three-phase four-wire 380V / 50Hz |
| Diesel Oil Burner Heat Value | 720,000 kcal |
| Temperature Control | Diesel burner automatically starts and stops according to bitumen and thermal oil temperature settings |
| Liquid Level System | Liquid level alarm system included according to source configuration |
| Residue Handling | Filter device installed in the bitumen circulation tube for automatic slag removal |
Power supply differences, drum specification, installation and debugging scope, and final supply details should be confirmed during RFQ.
قائمة مراجعة طلب عرض الأسعار
اطلب عرض أسعار لسلسلة YDST
