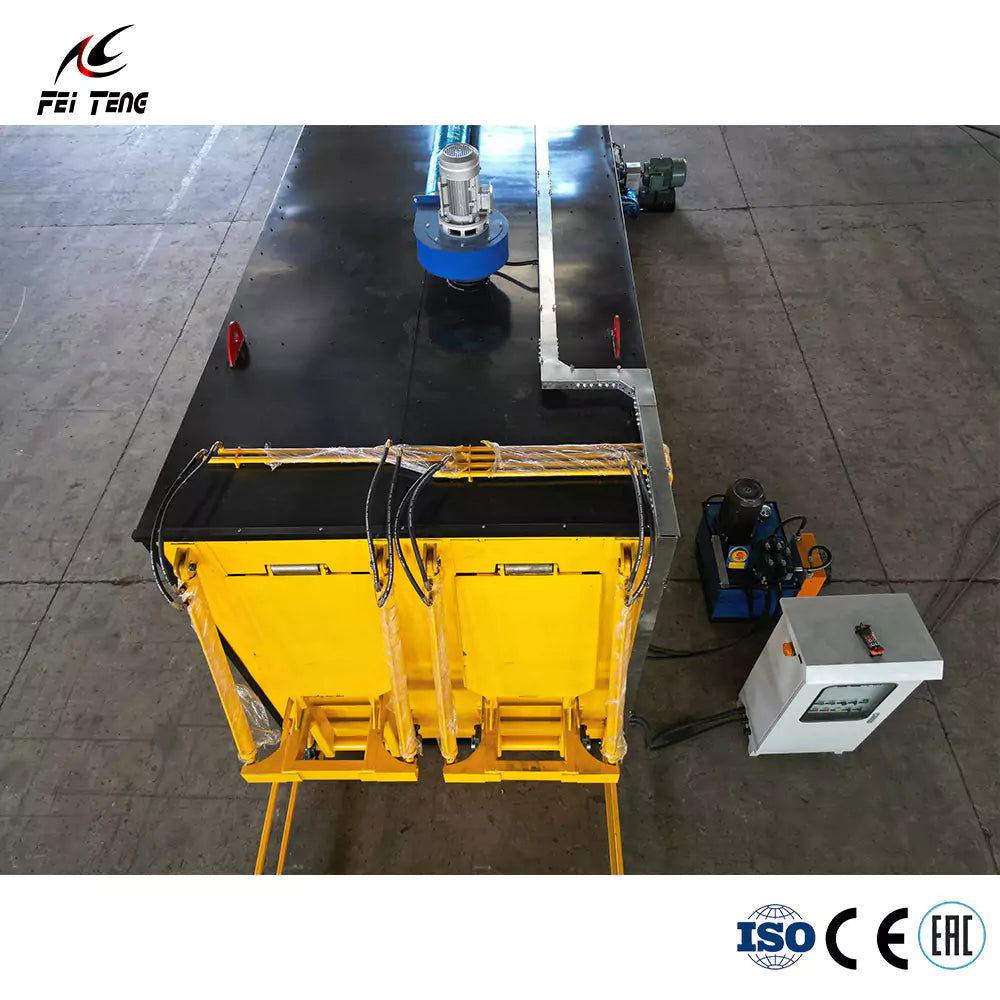

ہماری کمپنی کی طرف سے تیار کردہ FDLT سیریز کے بٹومین ڈمپنگ کا سامان تھرمل آئل کو ہیٹنگ میڈیم کے طور پر لیتا ہے، اور سامان کوائل کو گرم کرنے، پگھلنے اور ڈمپنگ کے عمل کو ختم کرنے کے لیے گرم کرتا ہے۔ اور سامان حرارتی معیار کی ضمانت دیتا ہے اور اس میں اعلی حرارتی کارکردگی، تیز ڈمپنگ کی رفتار، مزدوری کی شدت میں کمی اور آلودگی میں کمی کی خصوصیات ہیں۔
Technical Specifications
Item |
Unit |
Parameter |
---|---|---|
Capacity |
t/h |
8-10 |
Melting residual rate |
% |
≤0.2% per drum |
Melting speed |
Drum/hour |
50-60 |
Heating efficiency |
% |
≥90 |
Production type |
Continuous production |
|
Heating mode |
Thermal oil indirect heating |
|
Melting tank volume |
m³ |
15 |
Bitumen pump model |
3GN80×2-46 |
|
Drum size |
mm |
Φ500-580 |
Sliding way |
Line |
2 |
Drum quantity |
Drum |
Φ500 (32) Φ580 (28) |
Bitumen temperature |
°C |
110-140 |
Thermal oil operation temperature |
°C |
200-240 |
Total heat exchange surface |
m² |
103 |
Thermal oil volume |
m³ |
1.15 (≈1035kg) |
Electric part brand |
Schneider |
|
Motor brand |
Domestic first line brand |
|
Sensor brand |
Domestic first line brand |
|
Oil jar pushing force |
T |
5 |
Hydraulic pump power |
kW |
7.5 |
Total installed power |
kW |
18 |
Power supply requirements |
380 V 50Hz stable AC power supply |
|
Heating value |
Kcal |
800 thousand |
Installation dimension |
M |
Length x Width x Height = 12.02 x 2.25 x 3.02 |
