FDLT Automatic Drum Tipping Device Barrel Bitumen Melting Machine

FDLT Automatic Drum Tipping Device Barrel Bitumen Melting Machine

Our Advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Delivery&Shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

Our Service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requiremen

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

After Sale Service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

View full details

With the fast developing of road construction and increasing demand of asphalt, barreled bitumen has been widely used with easy transportation and easy to storage, especially the high quality imported barreled bitumen in the construction of high grade road. And this demands bitumen dumping equipment with features of fast melting speed, complete dumping and prevention bitumen from aging.

The FDLT series bitumen dumping equipment developed by our company takes thermal oil as heating medium, and the equipment heats the coil to finish the heating, melting and dumping process. And the equipment guarantees the heating quality and has the features of high heating efficiency, high dumping speed, labor intensity reduction and pollution reduction.

Technical Specifications

Item
Unit
Parameter
Capacity
t/h
8-10
Melting residual rate
%
≤0.2% per drum
Melting speed
Drum/hour
50-60
Heating efficiency
%
≥90
Production type
Continuous production
Heating mode
Thermal oil indirect heating
Melting tank volume
m³
15
Bitumen pump model
3GN80×2-46
Drum size
mm
Φ500-580
Sliding way
Line
2
Drum quantity
Drum
Φ500 (32) Φ580 (28)
Bitumen temperature
°C
110-140
Thermal oil operation temperature
°C
200-240
Total heat exchange surface
m²
103
Thermal oil volume
m³
1.15 (≈1035kg)
Electric part brand
Schneider
Motor brand
Domestic first line brand
Sensor brand
Domestic first line brand
Oil jar pushing force
T
5
Hydraulic pump power
kW
7.5
Total installed power
kW
18
Power supply requirements
380 V 50Hz stable AC power supply
Heating value
Kcal
800 thousand
Installation dimension
M
Length x Width x Height = 12.02 x 2.25 x 3.02
FDLT Automatic Drum Tipping Device Barrel Bitumen Melting Machine - Feiteng

FDLT Automatic Drum Tipping Device Barrel Bitumen Melting Machine

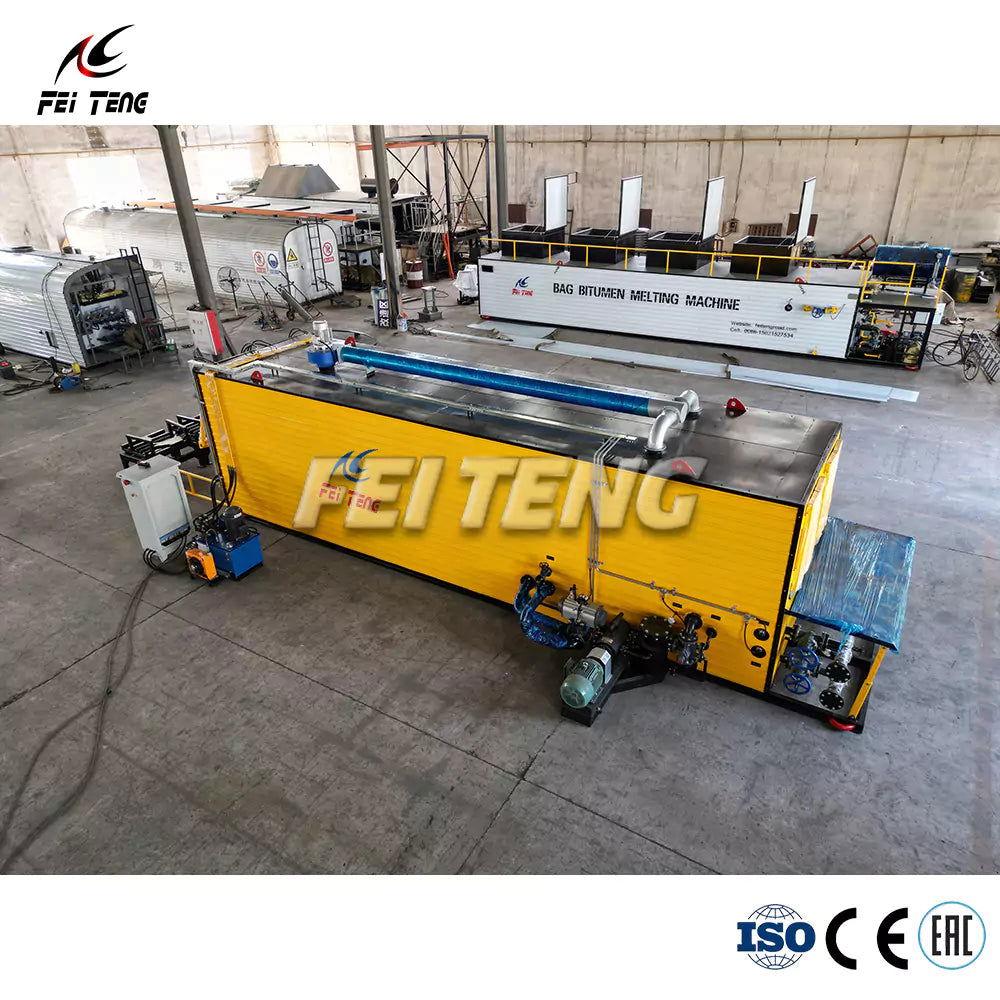

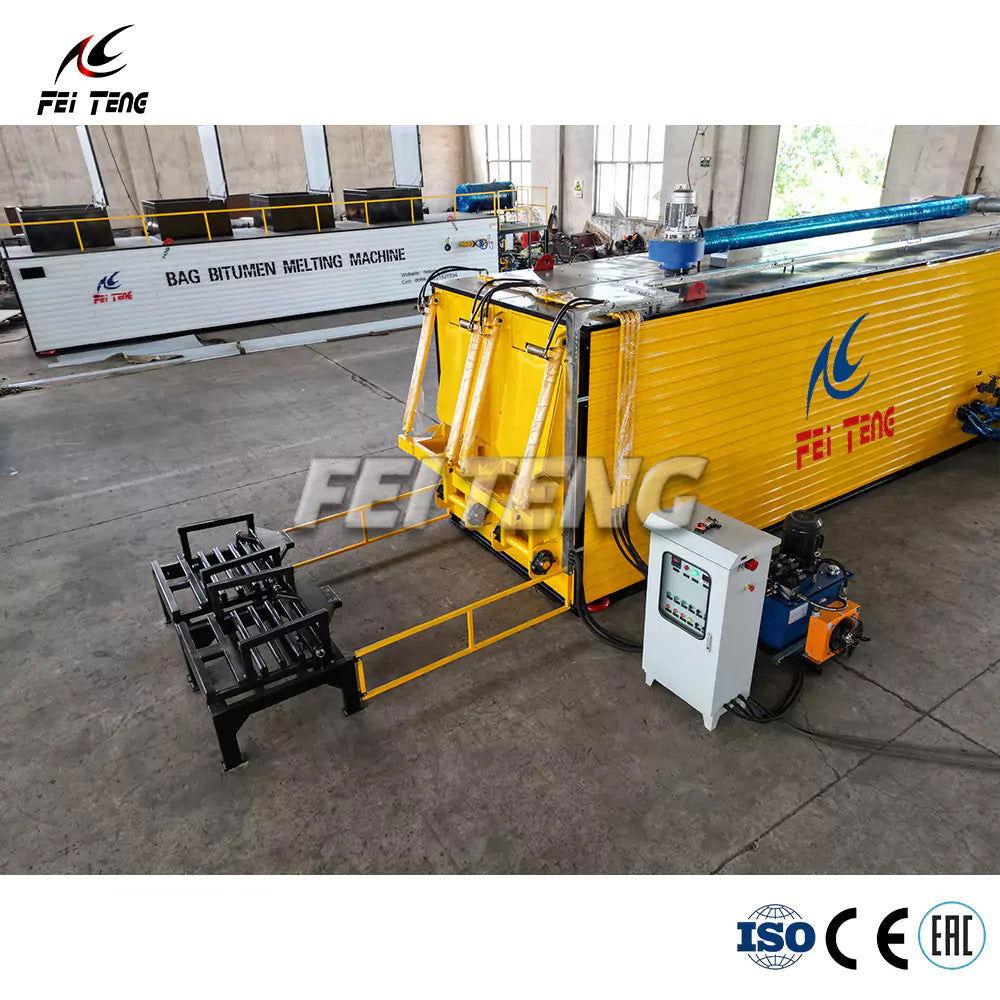

The bitumen melting equipment consists of melting tank, thermal oil heating system, hydraulic feeding system, bitumen inner circulation devices, bitumen pump, hot air circulating system and electric control system.

The melting tank is divided into two chambers. The upper one is bitumen dumping chamber equipped with heating coil, and the heating coil exchanges the heat with barrel in radiation to melt the bitumen.

The two sliding ways are barrel pushing passage. The lower chamber continues to heat the bitumen to reach the required temperature(110°C), then the bitumen can be pumped into storage tank after the bitumen reaches the operation temperature and has no moisture, also with with necessary monitoring instrument and safety control device.

Main features of FDLT bitumen melting machine

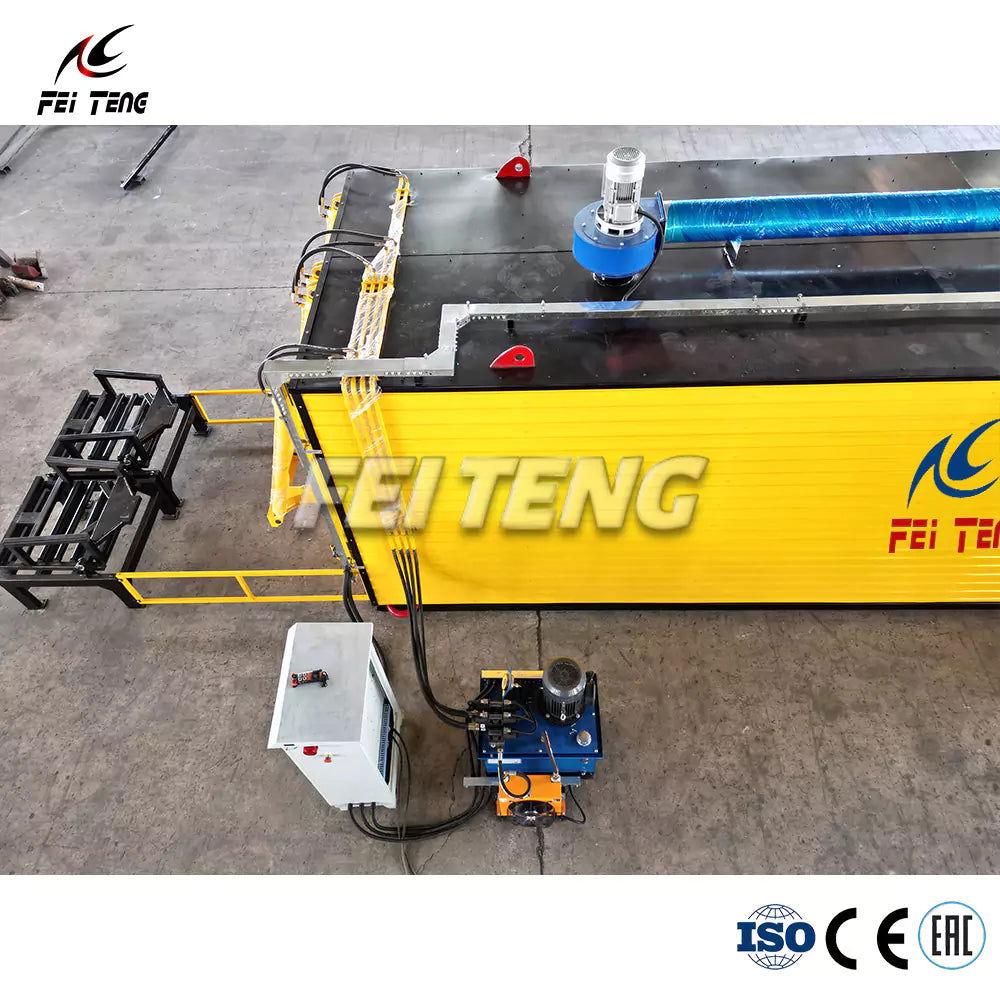

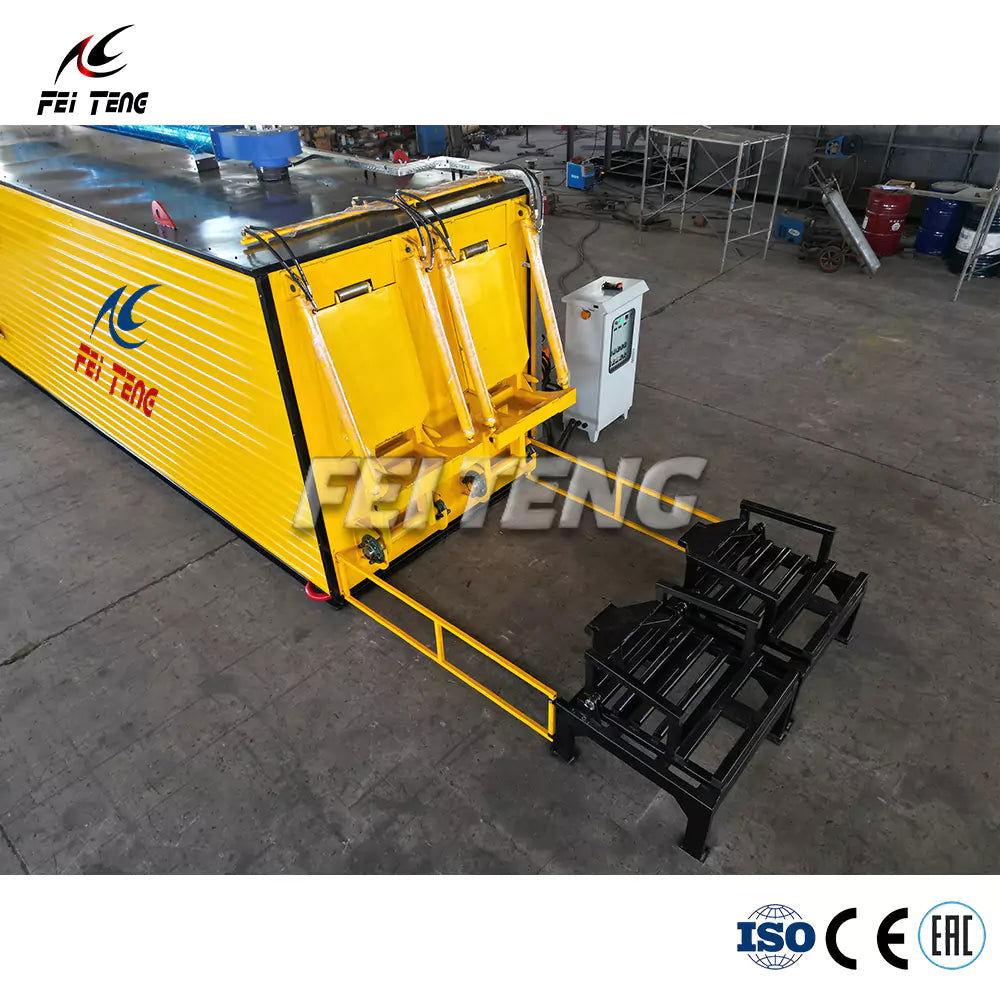

    • The equipment adopts automatic spring door sealed box structure. The drums can be lifted by the forklift and put on the flipping frame, then click the corresponding channel button on the remote control under 'remote control mode' to automatically complete the drum loading process, the operation is simple and labor-saving.
    • Dumping efficiency: adopt multi-layer heating to ensure the thermal efficiency, thermal oil two inlets/two outlets, high energy utilization, and the dumping body is insulated by superior mineral wool material.
    • Environmental-friendly: closed structure and no pollution.
    • Complete removal: the upper side of dumping device has large heat storage and each barrel is directly heated by the thermal oil coil. The above mentioned advantages guarantees the bitumen can be removed completely and no waste.
    • Strong adaptability: it could be suitable for various drum diameters between 500-580mm.
    • Automation: the device can achieve one click drum loading, clicking the corresponding channel button on the remote control under the remote control mode can automatically complete the drum loading process, greatly reducing labor.
    • Easy relocation: modular design, easy to transport and assembly.
