DXL-serie rubberasfaltproductieapparatuur

Name: DXL-serie rubberasfaltproductieapparatuur
Brand: Feiteng
Price: 48000.0 USD
Rating: 5 (1 reviews)

DXL type rubber, gemodificeerde bitumen productieapparatuur is een zelfverwarmende multifunctionele asfalt batching productieapparatuur ontworpen door ons bedrijf. Deze apparatuur is geschikt voor de voorbereiding en productie, ontwikkeling en opslag van alle soorten rubber poeder gemodificeerde bitumen en SBS gemodificeerde bitumen zonder thermische olie ketel op locatie.

Alle details bekijken

YDXL-28: Rubber Bitumen Production — 20 Tons Per 2-Hour Batch, No Boiler Needed

The DXL series self-heating unit (model YDXL-28) produces rubber and SBS modified bitumen at project sites with no external boiler: two Baltur diesel burners and thermal oil coils heat the 28 m³ tank at about 20 °C per hour, three variable-frequency agitators and a 45 kW colloid mill handle dispersion, and each batch delivers around 20 tons in roughly 2 hours. Pair it with the matched YDXL-28C storage tank for continuous supply.

Why Contractors Choose YDXL-28

20 t Per Batch, ~2 Hours
Batch numbers you can plan a paving schedule around — two batches per shift keeps a rubber-asphalt paving train continuously supplied.
No External Boiler Needed
Twin Baltur diesel burners with thermal oil coils make the unit fully self-heating — deploy at remote road projects with nothing but diesel fuel.
Rubber and SBS in One Machine
The reserved feeding interface takes crumb rubber powder or SBS — switch formulations between projects without changing hardware.
Aerogel-Grade Insulation
High-polymer aerogel plus rock wool insulation holds batch temperature between operations — less reheating diesel burned per ton produced.

Which Feiteng Modified Bitumen System Fits Your Project?

Choose YDXL-28 for self-heating batch production of rubber or SBS bitumen at 20 t/batch — and pair it with the matched YDXL-28C rubber bitumen storage tank so production and paving run from separate vessels. Need continuous 15 t/h SBS production with PLC control? See the GLS-15 skid-mounted unit. Small-batch PMB production or storage? Compare the YZGL-L5 5 m³ PMB tank.

Send us your additive type, batch size and fuel condition — our engineers will recommend the right configuration within 24 hours.

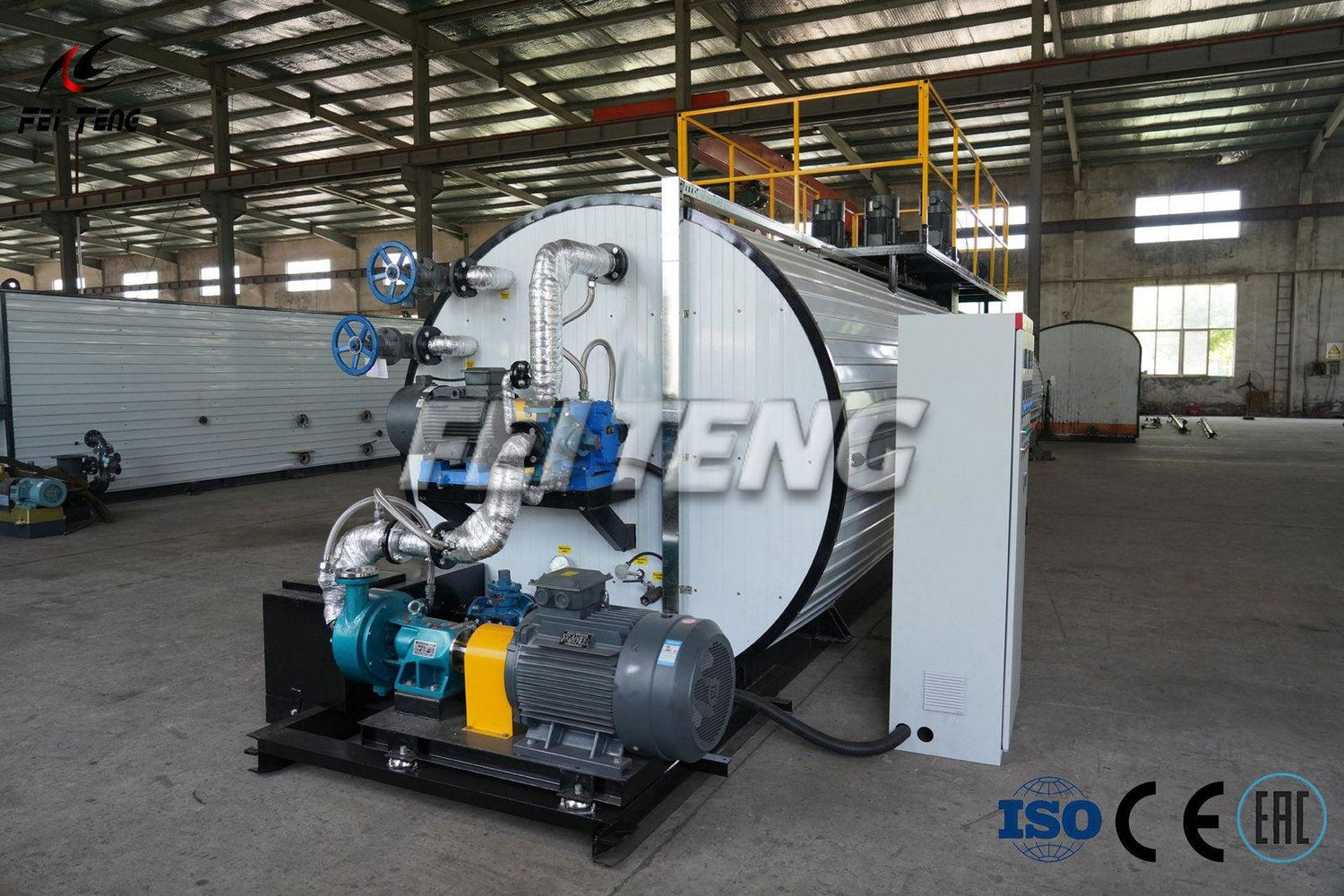

DXL-serie rubberasfaltproductieapparatuur - Feiteng - FEITENG-Asphalt-Rubber-Recycling-System - -

Step 1 — Matrix Bitumen Injection

Inject base bitumen into the 28 m³ tank

Base bitumen enters the production tank ahead of heating and additive feeding. The 28 m³ volume takes a full 20-ton batch with working headroom for agitation — one fill, one batch, no topping up mid-cycle.

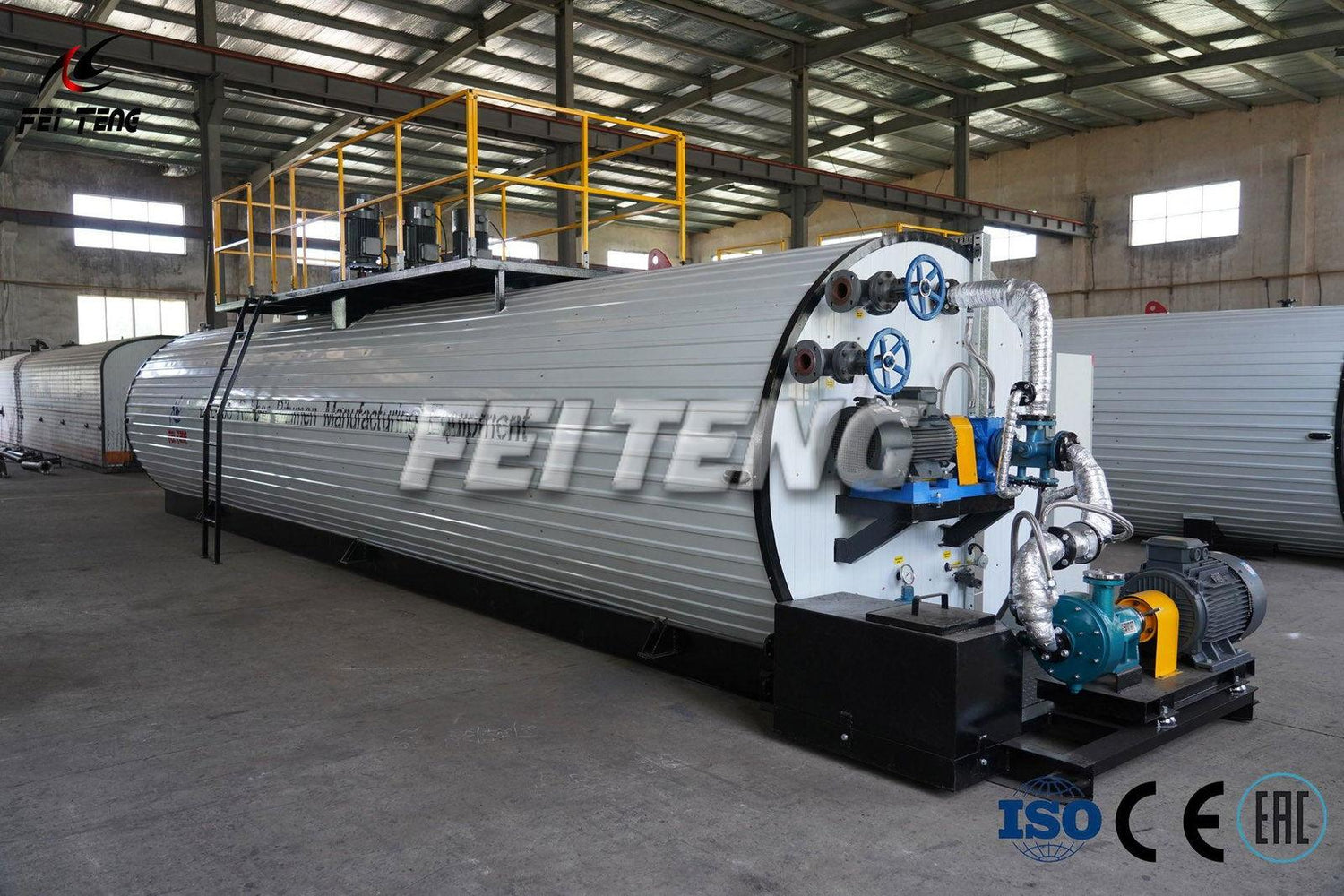

DXL-serie rubberasfaltproductieapparatuur - Feiteng - FEITENG-Modified-Bitumen-Manufacturing-Machinery - -

Step 2 — Double Heating

Heat with twin Baltur burners and thermal oil coils

Two Italian Baltur diesel burners drive flue heating for speed while thermal oil coils spread gentle, even heat — the tank climbs about 20 °C per hour without scorching bitumen at hot surfaces. The burners start and stop automatically at your set temperatures, interlocked with the oil circulation pump.

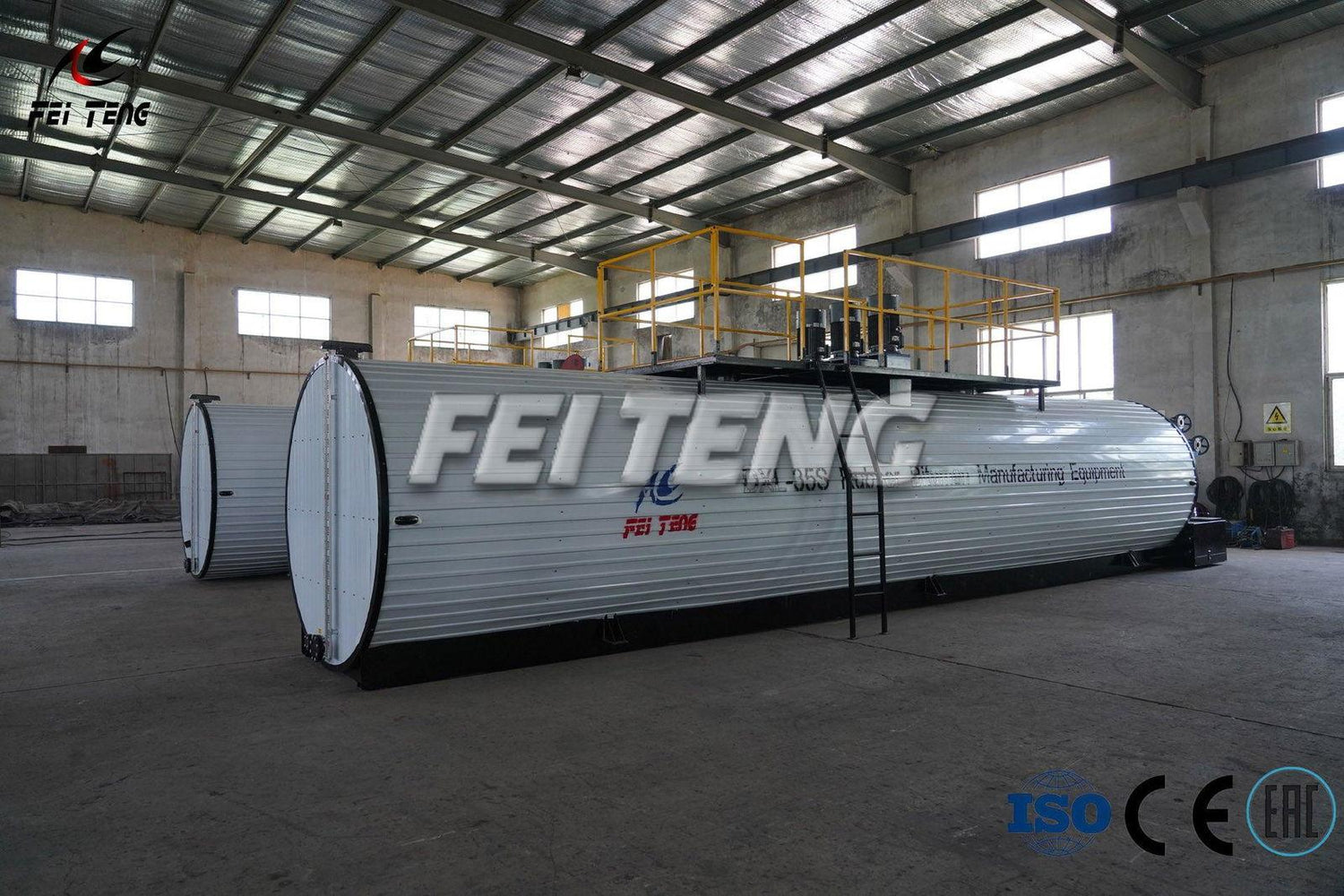

DXL-serie rubberasfaltproductieapparatuur - Feiteng - FEITENG-Asphalt-Rubber-Plant - -

Step 3 — Additive Feeding

Feed rubber powder or SBS through the reserved interface

Crumb rubber or SBS enters through the dedicated feeding interface at the rate your formula requires. The same machine runs both additive families — useful when one season's contracts call for rubber asphalt and the next for SBS.

Step 4 — Agitation and Grinding

Disperse through agitators and the 45 kW colloid mill

Three 7.5 kW variable-frequency agitators keep the batch moving while the 45 kW colloid mill (10 m³/h) grinds additive into the bitumen matrix in circulation passes. Grinding fineness is what determines the elasticity and stability of the finished rubber bitumen — this loop is the heart of the machine.

Step 5 — Storage Transfer

Pump the finished batch to the matched storage tank

The YCB18/0.6 insulated gear pump (18 m³/h) transfers the finished batch to the matched YDXL-28C storage tank, freeing the production tank for the next batch. Production and paving draw from separate vessels — neither waits for the other.

Main Components

28 m³ Production Tank
Main vessel for heating, mixing, grinding circulation and batch production — 12 × 2.26 × 2.55 m overall.
Twin Baltur Diesel Burners
Italian-brand burners with automatic start-stop logic — the self-heating core of the system.
Thermal Oil Circulation
RY50-32 pump, 12 m³/h at 2.2 kW, distributing coil heat evenly (≈550 L oil charge).
Colloid Mill (45 kW)
10 m³/h grinding capacity — disperses rubber and SBS to the fineness modified bitumen specs demand.
Three VF Agitators
7.5 kW each, variable-frequency — agitation energy matched to the formulation, not run flat out.
Insulated Bitumen Pump
YCB18/0.6 gear pump, 18 m³/h at 11 kW, with DN65 connections and 25 mm sampling valve.
Aerogel + Rock Wool Insulation
Premium insulation holds batch temperature between operations, cutting reheating fuel.
Electrical Control System
Burner logic, temperature instruments, pump and agitator control — ≈81.5 kW production unit, ≈36.5 kW storage tank.

Key Technical Parameters

Core specifications of the YDXL-28 rubber bitumen manufacturing machine and matched storage tank.

Item	Specification
Model	YDXL-28S (production) / YDXL-28C (storage)
Product Type	Self-heating rubber bitumen manufacturing machine + matched storage tank
Heating Method	Twin diesel burner direct heating + thermal oil coils (double heating)
Tank Capacity	28 m³
Production Per Batch	≈20 tons, about 2 hours per batch
Heating Rate	≈20 °C/h whole tank
Diesel Burners	2 × Italy Baltur, automatic start-stop
Colloid Mill	10 m³/h, 45 kW
Agitators	3 × 7.5 kW variable-frequency
Bitumen Pump	YCB18/0.6 insulated gear pump, 18 m³/h, 11 kW, DN65
Thermal Oil Pump	RY50-32, 12 m³/h, 2.2 kW (≈550 L oil charge)
Sampling Valve	25 mm high-temperature ball valve
Total Power	≈81.5 kW (production) / ≈36.5 kW (storage tank)
Overall Dimensions	12 × 2.26 × 2.55 m (shipping reference 12 × 2.31 × 2.53 m)
Insulation	High-polymer aerogel + rock wool

External pipelines, valves and flanges are confirmed before supply — formulation, voltage and storage tank scope are finalized with your quotation.

Applications

Rubber Asphalt Road Projects
Produce crumb-rubber bitumen at the project site — no boiler infrastructure, no dependence on distant supply plants.
SBS Modified Bitumen Batches
Batch production, development and storage of SBS modified bitumen with the same machine.
Mobile and Remote Sites
Self-heating design and container-compatible dimensions deploy wherever diesel is available.

Built by Feiteng — 15+ Years of Bitumen Equipment Export

YDXL-28 is manufactured in our Dezhou factory alongside the bitumen equipment we have delivered to the UK, Zimbabwe, Mongolia, Uganda and the Wirtgen Group. Every unit ships with a one-year quality warranty, online commissioning support, and engineer dispatch on request.

Read the case: complete bitumen processing equipment delivered to Zimbabwe →

RFQ Checklist

For an exact YDXL-28 quotation, tell us: target batch output, rubber powder or SBS formulation, diesel supply condition, power supply, storage tank requirement, external pipeline scope, site layout, shipping destination, and installation constraints.

YDXL-28 FAQ

What is YDXL-28 used for?

Batch production of rubber (crumb rubber) and SBS modified bitumen at 20 tons per ≈2-hour batch, with development, storage and finished-product pumping — no external boiler required.

What heating method does it use?

Double heating: two Baltur diesel burners drive direct flue heat while thermal oil coils heat indirectly — about 20 °C per hour for the whole tank, under automatic control.

Can it run both rubber powder and SBS?

Yes — the reserved feeding interface accepts both additive families, so one machine covers rubber asphalt and SBS contracts.

Does YDXL-28 include a storage tank?

A matched YDXL-28C rubber bitumen storage tank is available so production and paving run from separate vessels — tell us your storage need and we quote the pair together.

What are the payment terms?

Usually T/T: 30% down payment, balance before delivery. L/C is also accepted. Trade terms: EXW, FOB, CFR and CIF.

How long is the delivery time?

About 20 days of production time after the down payment is received.

What warranty and after-sales support do you provide?

One-year quality warranty after delivery, with online support included. We can also dispatch engineers for installation, commissioning and operator training.
