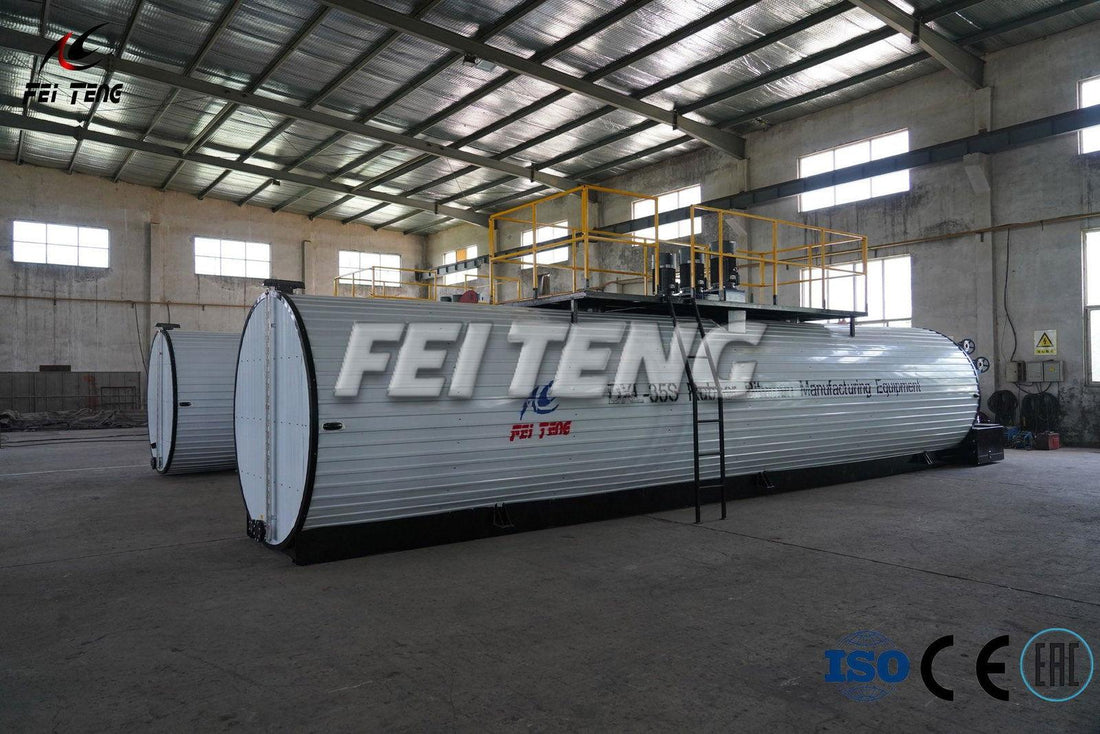

Why Polymer Modified Bitumen Production Requires Two Types of Equipment

Producing polymer modified bitumen is not simply a matter of adding SBS polymer or crumb rubber to hot bitumen. A reliable production system must complete two different process stages: manufacturing and maturation.

For this reason, a complete polymer modified bitumen system normally includes two main types of equipment:

1. A modified bitumen production plant for heating, dosing, mixing, dispersing, and grinding.
2. A modified bitumen maturation and storage tank for continued heating, agitation, stabilization, and supply.

Although the two units may appear similar from the outside, their internal functions are different. Understanding these differences helps contractors, asphalt plants, and road agencies select the correct configuration for SBS-modified bitumen or crumb-rubber-modified bitumen production.

What Is Polymer Modified Bitumen?

Polymer modified bitumen, commonly abbreviated as PMB, is produced by blending conventional paving-grade bitumen with a modifier such as SBS polymer, crumb rubber, or another elastomeric material.

The modifier is added to improve properties such as:

• High-temperature rutting resistance
• Low-temperature cracking resistance
• Elastic recovery
• Fatigue performance
• Adhesion and durability
• Resistance to heavy traffic loads

The final performance depends not only on the formulation, but also on temperature control, modifier dosage, shear intensity, grinding quality, mixing time, and maturation conditions.

Why One Machine Is Usually Not Enough

The production stage and the maturation stage have different technical requirements.

During manufacturing, the equipment must introduce and disperse the polymer into the hot bitumen. This requires a feeding system, weighing or dosing system, strong agitation, and usually a high-shear mill or grinding unit.

After manufacturing, the modified bitumen still needs time for the polymer to absorb lighter bitumen fractions, swell, develop a network structure, and become more uniform. This stage requires stable heating and continuous agitation, but it does not require another feeding or grinding system.

Using a dedicated unit for each stage provides a more continuous workflow. While one batch is maturing in the storage tank, the production plant can prepare the next batch.

Type 1: Modified Bitumen Production Plant

The modified bitumen production plant is the core processing unit. Its main purpose is to convert base bitumen and polymer modifier into a homogeneous modified binder.

1. Heating the Base Bitumen

Liquid bitumen is heated to the temperature required by the selected formulation and process. In many SBS- or crumb-rubber-modified bitumen applications, the process temperature may be approximately 180–190°C.

The exact temperature should be determined by the bitumen grade, polymer type, formulation, equipment design, and project specification. Excessive temperature or unnecessarily long heating periods can accelerate bitumen aging, while insufficient temperature may prevent proper polymer dispersion.

2. Polymer Feeding and Dosing

SBS polymer, crumb rubber, or another modifier is introduced into the hot bitumen through a controlled feeding system.

A typical production plant may include:

• Polymer feeding hopper
• Screw conveyor
• Weighing or dosing system
• Feed control mechanism
• Dust-reduction or enclosed feeding arrangement

Accurate dosing is essential because the polymer percentage directly affects viscosity, softening point, elastic recovery, storage stability, and material cost.

3. Mixing and Dispersion

After the modifier enters the hot bitumen, strong agitation begins the wetting and dispersion process. The mixer must prevent polymer accumulation and keep the material moving throughout the vessel.

Good circulation is important because polymer particles can float, settle, or form agglomerates when mixing is insufficient.

4. Grinding or High-Shear Processing

Many SBS modified bitumen systems use a colloid mill or high-shear grinding system. The mill reduces polymer agglomerates and improves dispersion throughout the bitumen phase.

The grinding process can influence:

• Particle distribution
• Mixture homogeneity
• Reaction speed
• Storage stability
• Final binder consistency

The number of circulation or grinding passes depends on the formulation, polymer type, mill design, and required product performance.

5. Process Control

A properly configured production plant should allow operators to control and monitor:

• Bitumen temperature
• Polymer dosage
• Mixing speed
• Grinding circulation
• Batch time
• Material level
• Pump and valve status

The finished material leaving this unit is modified bitumen, but it may not yet be fully matured or stable enough for immediate long-term storage.

Type 2: Modified Bitumen Maturation and Storage Tank

After production, the modified bitumen is pumped into a dedicated maturation and storage tank.

This tank provides the controlled environment required for further polymer swelling, stabilization, blending, and temperature maintenance.

Main Functions of the Maturation Tank

A dedicated PMB maturation tank generally performs four functions:

• Maintains the required process temperature
• Provides continuous or intermittent agitation
• Allows sufficient maturation time
• Stores and supplies the finished material to downstream equipment

Heating System

The tank must maintain a stable material temperature during maturation and storage. Depending on the project design, heating may be provided through thermal oil coils, electric heaters, or another controlled system.

The heating system should compensate for heat loss without creating localized overheating.

Agitation System

Continuous or scheduled agitation helps prevent polymer separation and maintains uniform temperature and composition throughout the tank.

The agitator design should be matched to the tank geometry, bitumen viscosity, polymer content, and operating temperature.

Thermal Insulation

Proper insulation reduces heat loss, lowers energy consumption, and supports more stable maturation conditions. The insulation system should be designed according to tank size, local climate, storage temperature, and expected holding time.

Maturation Time

Each batch may require approximately one to two hours of maturation, but this is not a universal fixed value.

The required time can vary according to:

• Polymer type and particle size
• Polymer dosage
• Base bitumen composition
• Process temperature
• Mixing intensity
• Grinding quality
• Target performance specification

Laboratory testing and the approved formulation should determine the actual maturation procedure.

How the Maturation Tank Differs from the Production Plant

The maturation tank may use a vessel structure similar to the production plant, including heating, agitation, insulation, pumps, and control components.

However, it normally does not require:

• A polymer feeding port
• A polymer weighing system
• A screw conveyor
• A colloid mill or grinding system

Recommended Production Workflow

A typical batch process follows these steps:

1. Transfer base bitumen into the modified bitumen production plant.
2. Heat the bitumen to the specified process temperature.
3. Add SBS polymer or crumb rubber at the required dosage.
4. Mix and circulate the material.
5. Process the material through the grinding or high-shear system.
6. Confirm temperature, viscosity, dispersion, and other required indicators.
7. Pump the modified bitumen into the maturation tank.
8. Continue heating and agitation for the required maturation period.
9. Store the finished material under controlled conditions.
10. Supply the asphalt mixing plant, loading system, or downstream process.

Benefits of Separating Production and Maturation

Higher Production Efficiency

The production unit can begin the next batch while the previous batch matures in the storage tank. This reduces idle time and increases system throughput.

More Stable Product Quality

Dedicated maturation provides sufficient time for polymer swelling and stabilization under controlled temperature and agitation.

Reduced Risk of Separation

A properly designed storage tank keeps the modified bitumen moving and reduces the risk of polymer-rich and bitumen-rich layers forming during storage.

Better Maintenance Flexibility

Separate equipment allows one unit to be cleaned, inspected, or maintained without necessarily stopping every stage of the operation.

Flexible Capacity Expansion

Additional maturation tanks can be added when a project requires larger storage capacity, multiple formulations, or continuous production.

How to Size the Two Systems

The production plant capacity and maturation tank capacity should be calculated as one integrated system.

Important design data include:

• Required PMB output per hour or per day
• Batch size
• Production time per batch
• Maturation time per batch
• Number of batches per shift
• Asphalt plant consumption rate
• Required finished-product reserve
• Number of PMB formulations or grades

For example, a production plant that finishes one batch every hour may require sufficient maturation capacity to hold multiple batches when each batch needs two hours of stabilization.

The tank capacity should also include operating reserve and safe filling space. It should not be selected only by matching the nominal batch volume.

Important Equipment Selection Questions

Before requesting a quotation, project owners should provide:

• Base bitumen grade
• Modifier type: SBS, crumb rubber, or another polymer
• Modifier dosage range
• Required production capacity
• Batch or continuous process preference
• Target product specification
• Available heating fuel or energy source
• Local ambient temperature
• Required storage capacity
• Downstream asphalt plant demand
• Site layout and installation restrictions

This information allows the manufacturer to match the production vessel, agitators, mill, pumps, heating system, storage tanks, pipelines, and control system.

Common Configuration Mistakes

Using the Production Tank as the Only Storage Tank

This prevents the production plant from starting the next batch and reduces overall capacity.

Insufficient Agitation During Storage

Modified bitumen can separate when stored without adequate circulation or agitation.

Undersized Maturation Capacity

If the storage tank cannot receive each finished batch on time, the production line must stop and wait.

Excessive Heating Temperature

Higher temperature does not always mean faster or better modification. Excessive heat can age the bitumen and damage some polymer systems.

Ignoring Laboratory Formulation Requirements

Equipment alone cannot guarantee product performance. The process must follow an approved formulation and testing procedure.

Frequently Asked Questions

Can SBS modified bitumen be produced with only one tank?

Small or intermittent operations may use simplified systems, but one tank limits production efficiency because the vessel cannot manufacture the next batch while the previous batch is maturing or being stored.

Why is a colloid mill used in SBS modified bitumen production?

A colloid mill or high-shear unit helps break down agglomerates and distribute the polymer more evenly throughout the bitumen.

Does crumb-rubber-modified bitumen use the same equipment as SBS bitumen?

The general system layout may be similar, but the feeding, mixing, grinding, temperature, residence time, and storage requirements can differ. The equipment should be configured for the selected modifier and formulation.

How long should modified bitumen mature?

One to two hours is common in some processes, but the correct time depends on the formulation, polymer, base bitumen, temperature, and product specification.

Can the maturation tank directly supply an asphalt mixing plant?

Yes. With suitable heating, agitation, pumping, and pipeline systems, the maturation tank can also function as the finished-product supply tank.

Conclusion

A complete polymer modified bitumen production system generally requires two types of equipment because manufacturing and maturation are separate process stages.

The modified bitumen production plant handles polymer feeding, dosing, mixing, heating, and grinding. The maturation and storage tank then maintains temperature, continues agitation, allows the binder to stabilize, and supplies the finished product.

Correctly matching these two systems improves production continuity, product consistency, storage stability, and project reliability.
