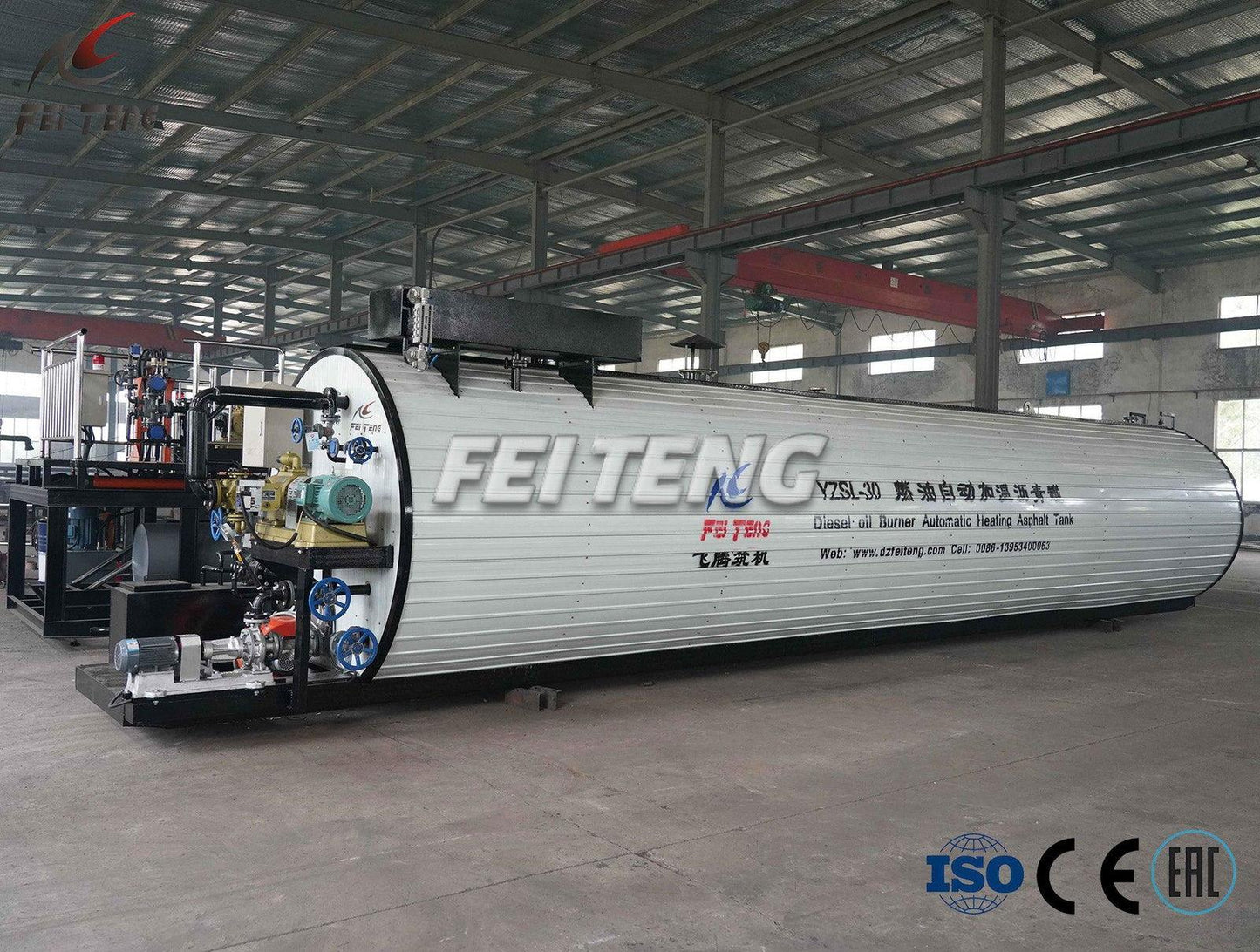

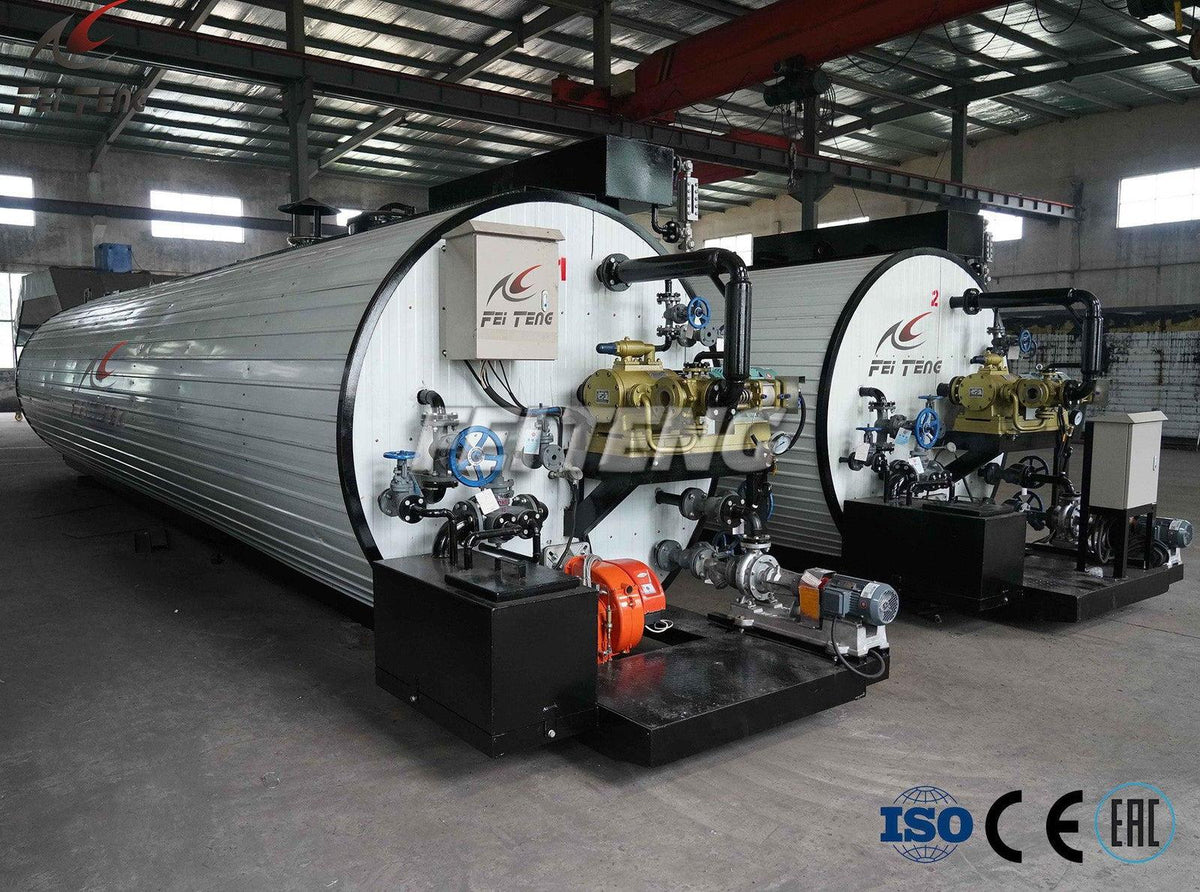

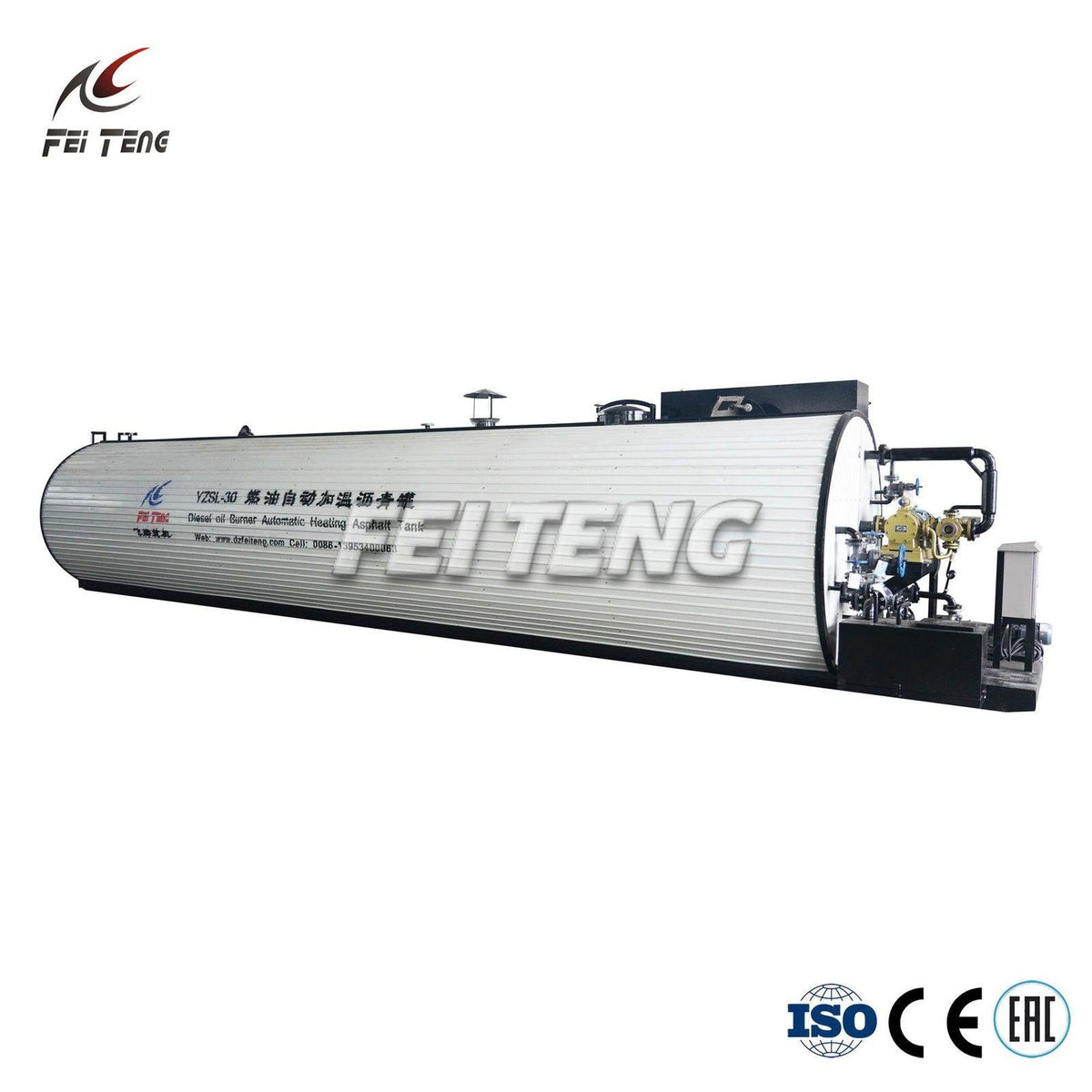

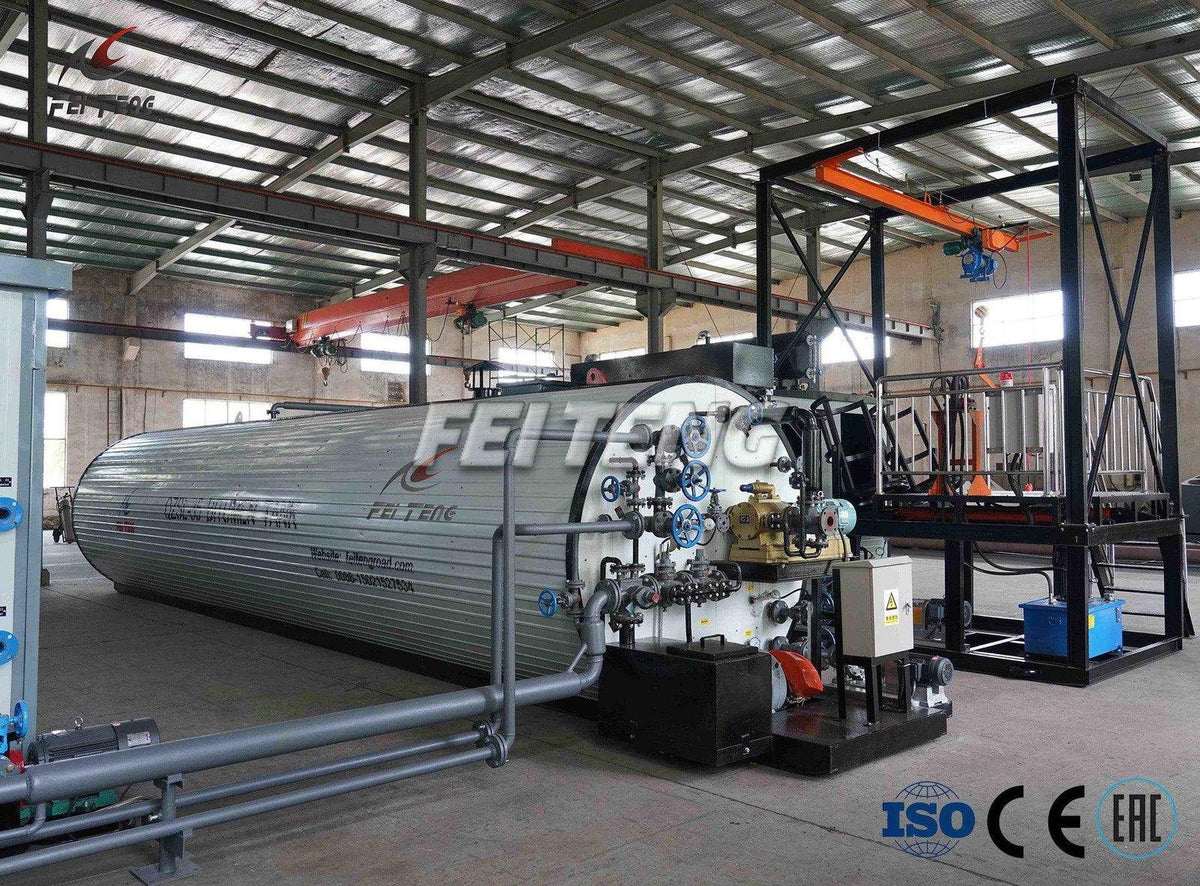

YZSL Series Bitumen Storage Tank (Double Heating)

YZSL Series Bitumen Storage Tank (Double Heating)

样式
  • Discover our professional Bitumen Heating and Storage System—a rugged and space-saving solution. Its integrated design, complete with automatic temperature control, ensures precise bitumen and thermal oil heating without manual intervention. This system exemplifies safety and efficiency, ideal for professional asphalt production.

Our Advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Delivery&Shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

Our Service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requiremen

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

After Sale Service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance

View full details

Main Parameters

Item
Parameter
Heating way
Burning direct heating and thermal oil indirect heating
Heating speed (℃/h)
10-15 (℃/h)
Diesel consumption (Kg/ton)
3-5 (Kg/ton)
Bitumen highest temperature (℃)
200 (℃)
Total capacity (m³)
50 (m³)
Outer size (m)
Φ2.7×length 12m
Support
complete base
Bitumen pump flow rate (m³/h)
16.8 (m³/h)
Total power (kw)
≈9 (kw)
Power supply
380 V 50 Hz Stable AC Power Supply
Thermal oil temperature (℃)
200-250 (℃)
Thermal oil temperature control
Auto control
Bitumen temperature control
Auto control
Environment protection
Complying with (better than) environmental protection requirements

Main Features

  • 1. Cost-Effective Integration:

    🔹 Our system's integral design seamlessly combines the thermal oil boiler with the bitumen tank. This innovative integration minimizes equipment investment, reduces transportation costs, and saves valuable space.

    2. High Heat Efficiency and Energy Savings:

    🔹 The built-in heating chamber ensures direct heat transfer and minimizes heat loss. Our system features a large heat transfer area, facilitating rapid heating and high production efficiency. It effectively utilizes high-temperature flue gas waste, resulting in maximum energy savings. The entire tank is insulated with thick, high-quality rock wool material, ensuring exceptional temperature performance and minimal heat loss.

    3. Precise Heating and Asphalt Preservation:

    🔹 Thermal oil indirect heating prevents bitumen aging by avoiding direct contact with bitumen in a high-temperature furnace.

    4. Advanced Automation for Peace of Mind:

    🔹 Featuring an automatic temperature control system, our system provides unattended operation. The burner starts and stops automatically based on preset bitumen and thermal oil temperatures, eliminating the need for manual supervision.

    5. Safety at Its Core:

    🔹 Our system incorporates a temperature automatic control system that safeguards against overheating of bitumen and thermal oil. Additionally, an interlock mechanism between the burner and thermal oil circulating pump prevents issues related to thermal oil circulation.

    6. Proven Stability:

    🔹 With a mature design, top-quality components, meticulous production processes, and rigorous inspections, our system guarantees unwavering stability and performance.

    7. Mobility and Ease of Installation:

    🔹 The integral structure simplifies hoisting and transportation. Installation is straightforward, making it easy to move the system to different locations as needed.

    8. Versatile Functionality:

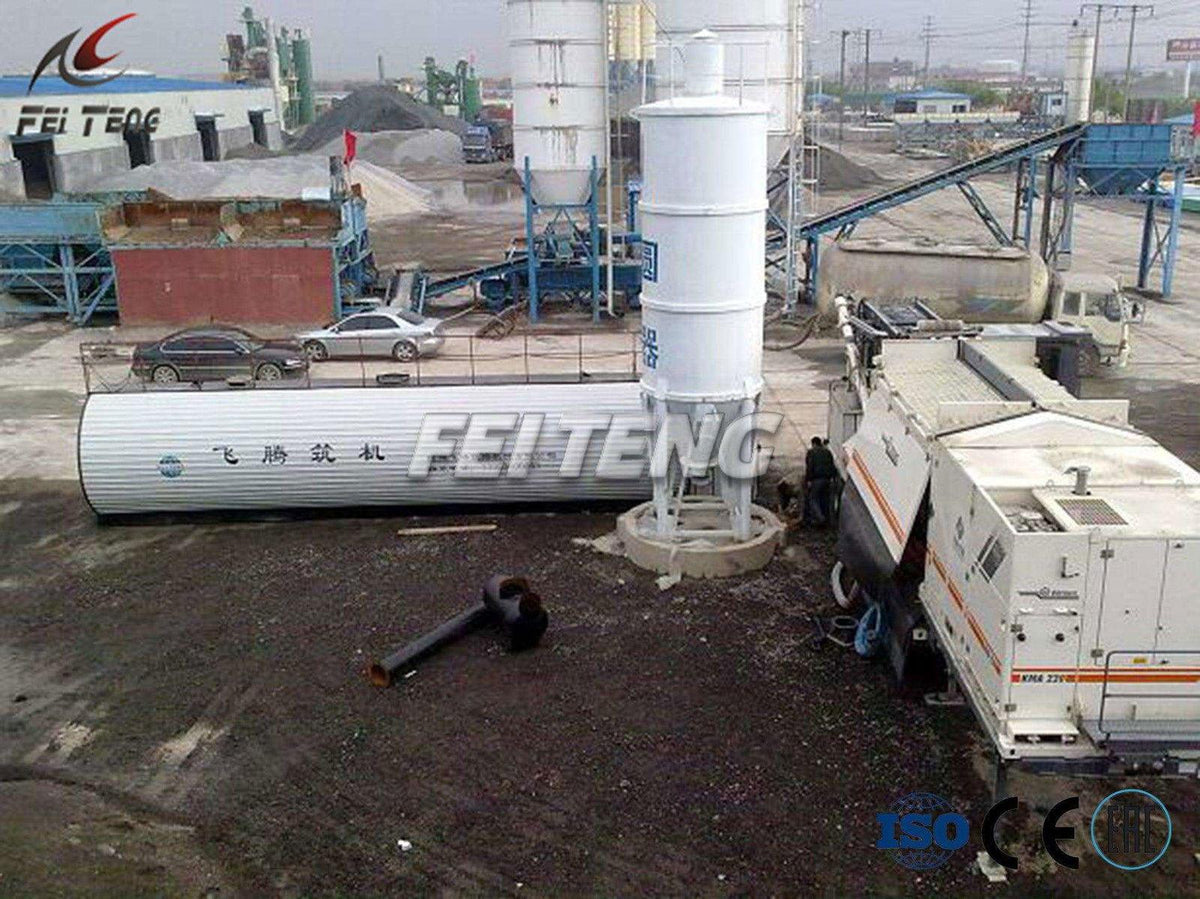

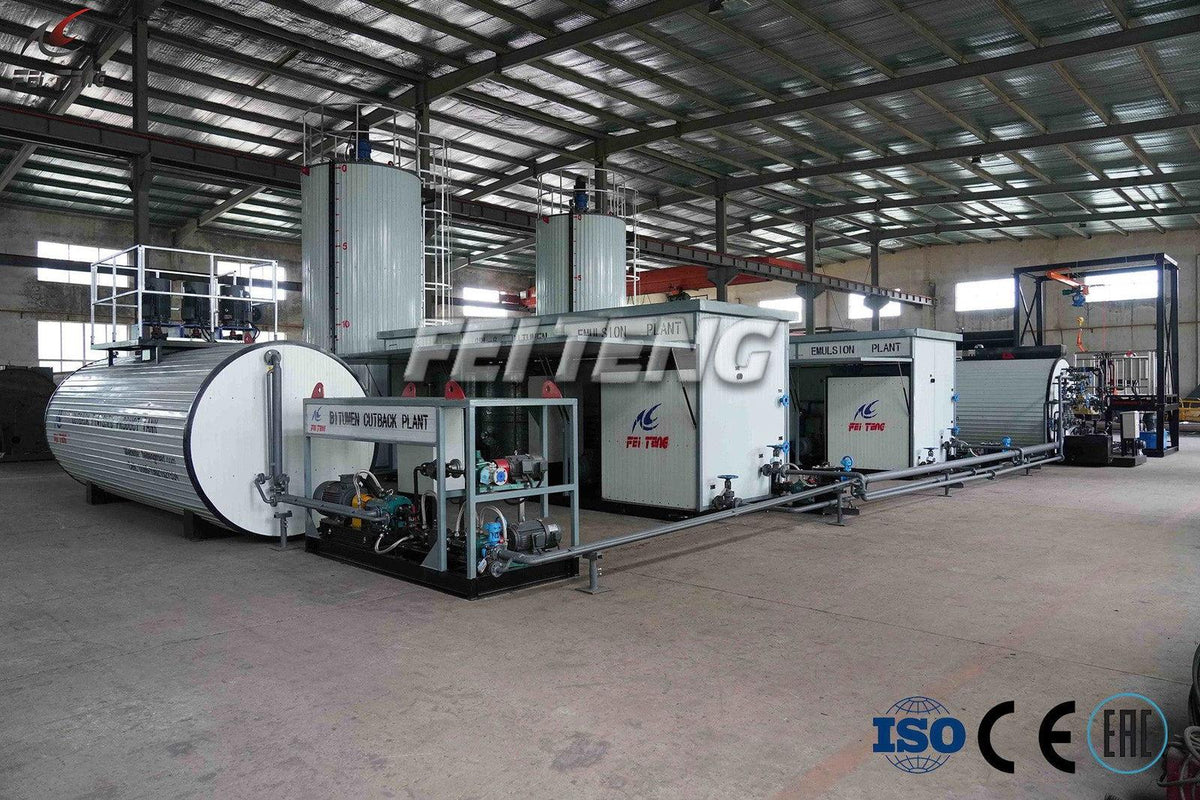

    🔹 Our bitumen tank meets the diverse requirements of base bitumen storage heating and bitumen pipeline heat tracing for various equipment, including asphalt mixing plants, bitumen emulsion machines, modified bitumen machines, and rubber bitumen manufacturing machines. It's also ideal for water heating in emulsion bitumen production.

    9. Additional Benefits:

    🔹 Our system offers an attractive appearance with a rational and compact layout, suitable for diverse working conditions. It's user-friendly, designed for labor-saving operation with low labor intensity. Furthermore, its closed structure ensures excellent environmental performance with no pollution.

Equipment Principle and Structure

  • 💠 The YSZL series fuel automatic double heating bitumen storage tank is a meticulously designed product that addresses the pressing needs for energy efficiency and environmental responsibility in our country. Our team, drawing from extensive experience in the field of bitumen heating, has created this exceptional equipment to enhance the standards of bitumen storage and heating.

    💠 This innovative equipment effectively merges the functions of a bitumen tank and a thermal oil boiler, resulting in a single, integrated unit. This integration brings significant advantages, including reduced equipment investment, lower transportation costs, and a more efficient use of space. Additionally, it minimizes the complexities associated with installing a separate thermal oil boiler.

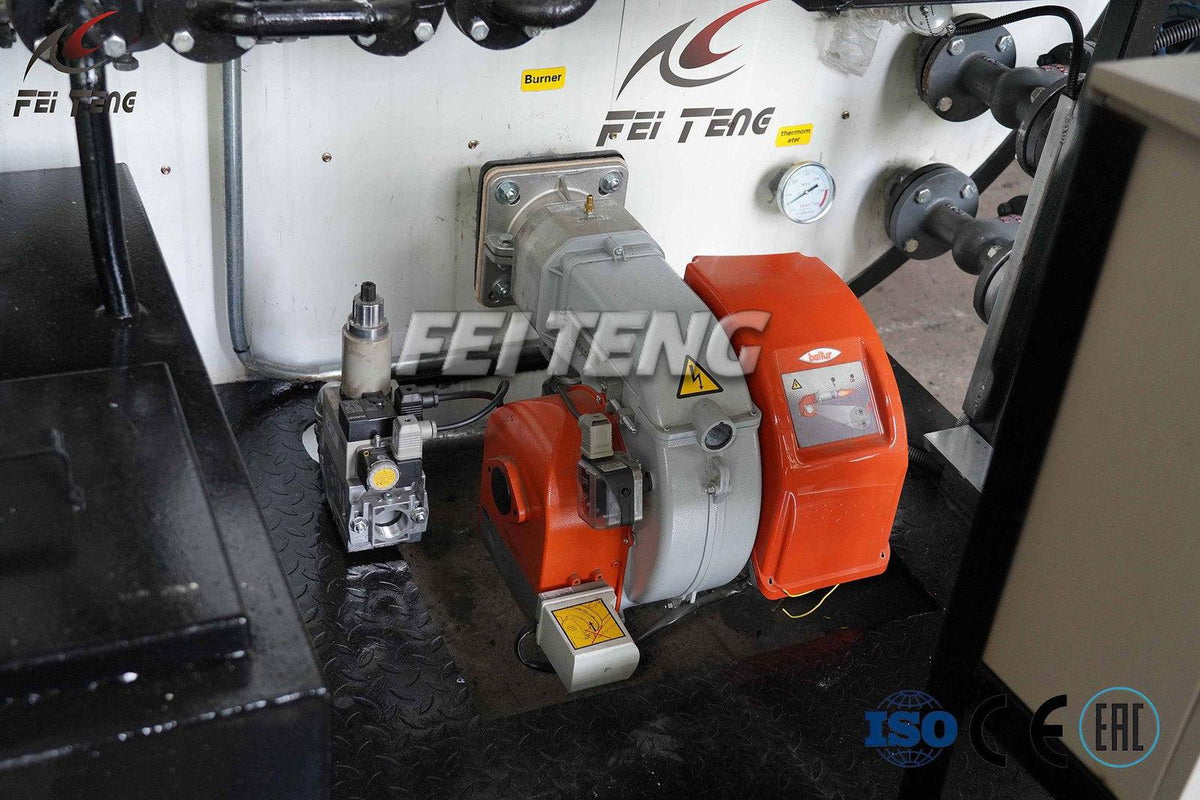

    💠 Powered by cleaner diesel oil and equipped with a high-performance Baltur burner from Italy, the system delivers stable performance, complete combustion, high thermal efficiency, and minimal environmental impact. It operates with automatic temperature control for bitumen heating, effectively setting upper and lower temperature limits for both bitumen and thermal oil. This feature ensures a seamless operation without the need for manual supervision.

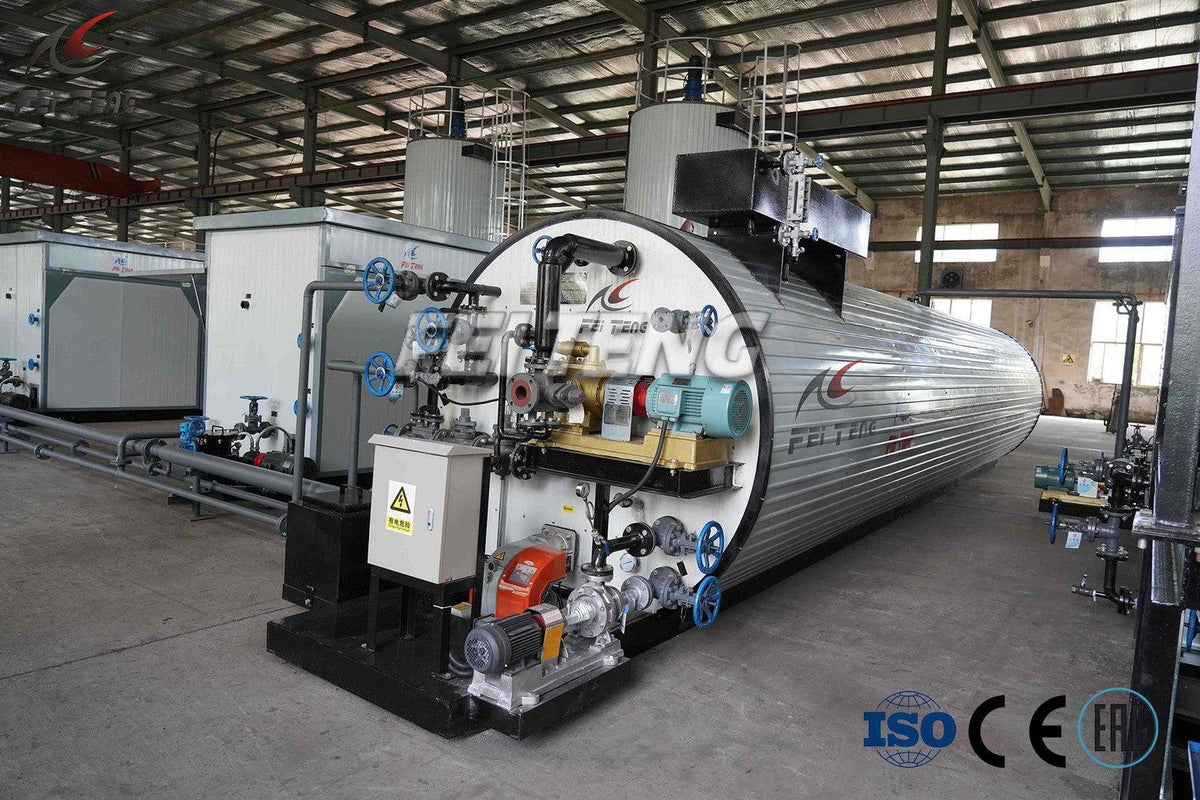

    💠 The equipment features a built-in combustion chamber with a thermal oil jacket layer, a multirow flue, and a thermal oil coil. The flame in the jacket layer heats the thermal oil, which is then circulated through the coil to heat the bitumen. Simultaneously, the hot exhaust gases are harnessed to heat the bitumen through the multirow flue. This innovative approach capitalizes on the high-temperature flue gas that is typically wasted by traditional thermal oil bitumen heating devices. It also eliminates the risk of bitumen aging, which can occur with direct heating in a combustion chamber. The result is faster, more uniform bitumen heating, higher output, improved thermal efficiency, and superior energy savings.

    💠 Furthermore, the system offers the unique capability to supply hot thermal oil to the bitumen pipeline system while heating the bitumen in the tank. It comes with a robust bitumen pump and a discharge manager, streamlining the process of filling and emptying the tank.

    💠 The tank body is meticulously insulated, ensuring that temperature loss does not exceed 10% of the ambient temperature difference within a 24-hour period.

    Key Equipment Components:
    - Bitumen tank body
    - Thermal oil boiler
    - Bitumen pump
    - Bitumen heating system

    This comprehensive system is ideal for various applications, including bitumen mixing plants, bitumen melting equipment, and meeting the demand for bitumen storage and heating in a wide range of industries. The equipment brings together efficiency, cost-effectiveness, and environmental responsibility, making it an attractive choice for customers seeking top-quality solutions in bitumen storage and heating.
